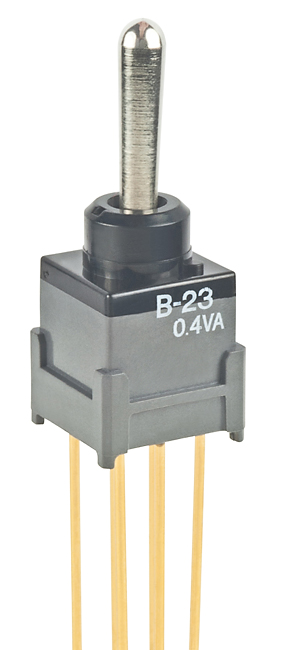

NKK Switches B23AW Subminiature Toggle Switch
A subminiature toggle switch designed for precision applications, suitable for mounting on printed circuit boards (PCBs). It features a compact size ideal for space-constrained electronic devices.
NKK Switches B23AW Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for certain circuits
- Nominal Operating Force: 2.72N (short paddle toggle)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Toggle Material: Nickel plated brass
- Bushing Material: Carbon blended polyamide; nickel plated zinc alloy for locking levers & threaded bushing
- Environmental Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration & Shock Resistance: 10-55Hz, 50G acceleration
- Mounting Torque: 30 in•lb
- Soldering: Wave and Manual soldering compatible; automated cleaning recommended
- Standards & Certifications: UL9AV-0, UL recognized (not CSA certified), designed for low-voltage logic circuits
Buy the Buy NKK Switches Series B Part Number B23AW Online
Purchase the NKK Series B B23AW toggle switch online today and ensure your electronic projects benefit from space-efficient, highly reliable switching components. This compact toggle is ideal for low-voltage, logic-level applications, providing excellent contact stability, quick installation, and easy cleaning. With high durability and UL recognition, it supports your needs for precision and longevity in electronic controls, automation, or PCB-based systems. Get yours now for seamless integration and dependable performance in your design.
Order your NKK Series B B23AW toggle switch today and enhance your electronic projects with reliable, space-saving switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches B23AW?
You can click on the BUY or RFQ button to purchase B23AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part B23AW?
You can download the B23AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of B23AW?
NKK Switches
