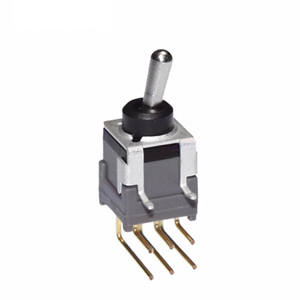

NKK Switches B29JH Subminiature Toggle Switch
Subminiature toggle switch suitable for various electronic and mechanical applications. Compact in size, designed for reliable switching performance in tight spaces. Engineered for low-voltage, low-current logic-level circuits, it features a sealed body construction to prevent contact contamination and ensure durability. Its nickel-plated brass toggle and epoxy-sealed terminals provide high stability and corrosion resistance. The switch supports a wide operating temperature range from -30°C to +85°C, making it ideal for space-constrained environments requiring dependable switching and minimal maintenance over extensive mechanical life cycles.
NKK Switches B29JH Subminiature Toggle Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute minimum
- Mechanical Life: 100,000 operations minimum for On-None-On
- Nominal Operating Force: 1.47N (momentary); 1.18N (maintained) for long paddle toggles
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Materials & Finishes: Nickel plated brass toggle, carbon blended polyamide bushing, nitrile butadiene rubber gasket, epoxy sealed terminals
- Operating Temperature Range: -30°C through +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm, 2 hours per direction
- Shock: 50G acceleration
- Mounting Torque: 30-45 in-lb
- Soldering: Wave and manual soldering recommended
- Standards & Certifications: UL 9AV-0, designed for low-voltage, low-current circuits
