NKK Switches S309 Standard Toggle Switch

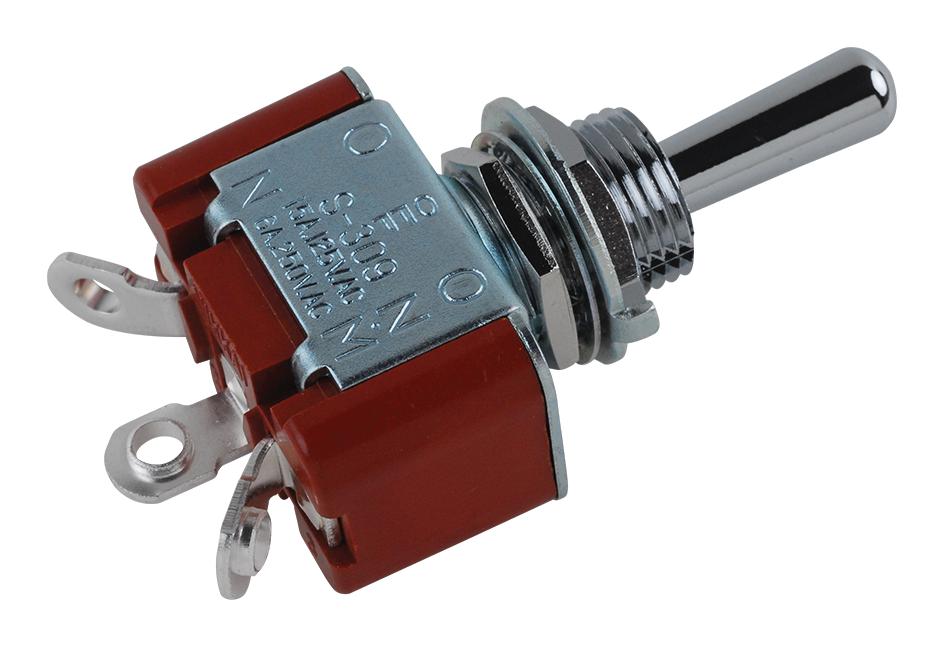

The S309 is a non-illuminated, medium- to high-capacity, standard-sized panel-mount SPDT toggle switch. It features ON-OFF-(ON) switching functionality with solder lug terminals. The switch has a PBT flatted lever, a chrome-plated brass toggle and bushing, and a melamine phenol case with a zinc-plated steel cover. It is designed for industrial applications, offering a minimum mechanical life of 50,000 operations and an electrical life of at least 25,000 operations. The operating temperature range is from -10°C to 70°C.
NKK Switches S309 Standard Toggle Switch Specifications:
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Operating Temperature Range: -10°C to +70°C
- Mounting Torque: 2.94Nm (26 lbsin) for double nut
- Maximum Panel Thickness: as per switch dimension drawings
- Soldering Time & Temperature: Manual soldering, see Profile A in supplement section
- Toggle Material: Brass with chrome plating
- Bushing Material: Brass with chrome plating
- Case Material: Melamine phenol
- Case Cover Material: Steel with chromate over zinc plating
- Movable Contactor: Copper with silver plating
- Movable Contacts: Silver alloy capped on copper with silver plating
- Stationary Contacts: Same as movable contacts
- Terminals: Brass with tin plating
