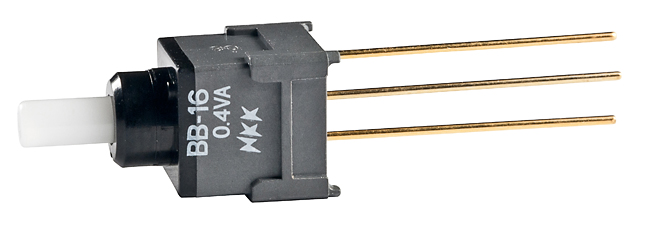

NKK Switches BB16AW Subminiature Pushbutton Switch
The BB16AW is a compact, process-sealed subminiature pushbutton switch designed for panel mounting in low-voltage, low-current logic circuits. It features an antistatic superstructure that prevents static discharge, ensuring high contact reliability. This switch supports both momentary and maintained circuits with tactile feedback, and its sealed construction guards against contamination, making it ideal for space-constrained applications requiring durability and precision.
NKK Switches BB16AW Subminiature Pushbutton Switch Specifications:
- Size: Subminiature, 1/3 size of Series M switches
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Operating Temp Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz with 1.5mm amplitude
- Shock: 50G acceleration
- Material: Polyacetal plunger, glass fiber reinforced polyamide case, tin plated phosphor bronze contacts
- Terminal spacing: 0.100” x 0.100” (2.54mm x 2.54mm)
Buy the Buy NKK Subminiature Pushbutton Part Number BB16AW Online
Experience high reliability with NKK's subminiature pushbutton switch, perfect for low-voltage applications where space is limited. The BB16AW provides tactile feedback, static discharge protection, and sealed construction to prevent contamination. Its compact size, long-lasting mechanical life, and stable electrical performance make it ideal for panel mounting in industrial control, automation, and instrumentation systems. Purchase online today to enjoy quick delivery and guaranteed quality for your precise electronic needs.
Get NKK BB16AW today—designed for space-saving, reliable, and static-protected circuit switching.
Frequently Asked Questions
Where can I buy NKK Switches BB16AW?
You can click on the BUY or RFQ button to purchase BB16AW from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part BB16AW?
You can download the BB16AW datasheet or visit the NKK Switches website for support.
Who is the manufacturer of BB16AW?
NKK Switches
