NKK Switches CKL12BTW01007 High Security Key Lock Switch
The high security key lock features a solder lug connection, providing secure and reliable electrical switching for demanding applications. Designed with rugged brass housing and nickel or chrome plating, it offers enhanced durability and corrosion resistance. The switch operates at a rated 3A at 250V AC with high dielectric strength of 1,500 volts between contacts and case, ensuring safety and performance. Its unique design includes key-removable positions, self-cleaning sliding contacts, and epoxy sealed terminals, making it ideal for high-security environments requiring dependable operation and long service life.
NKK Switches CKL12BTW01007 High Security Key Lock Switch Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC minimum between contacts and case
- Operating Temperature Range: -25°C to +70°C (-13°F to +158°F)
- Humility: 90-95% for 240 hours @ 40°C, 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm (CKM) / 0.7mm (CKL)
- Shock: 50G (CKM) / 30G (CKL) acceleration
- Bushing Diameter: 16mm or 19mm
- Housing Material: Brass with nickel or chrome plating
- Terminals: Solder lug
- Dielectric strength: 1500 volts between contacts and case
- Cycle Life: 30,000 on, 10,000 off cycles
- Environmental: Resistant to humidity, vibration, and shock
- Key Removable Positions: ON - NONE - ON for 3-position switches

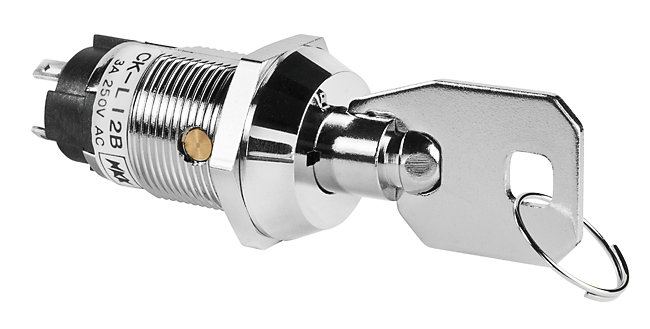

Buy the Buy Rugged Electrical Switch part number CKL12BTW01007 Online
Purchase the high security key lock switch CKL12BTW01007 online for reliable electrical switching in demanding applications. Featuring solder lug terminals, rugged brass housing, and rated for 3A at 250V AC, this switch offers high dielectric strength, corrosion resistance, and long cycle life. Its design includes epoxy sealed terminals for contaminant protection, and key-removable positions for enhanced security. Ideal for high-security environments where dependable operation, durability, and safety are essential, making it a critical component for industrial and security systems.
Get Rugged Electrical Switch CKL12BTW01007 today—designed for high security and long-lasting durability in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BTW01007?
You can click on the BUY or RFQ button to purchase CKL12BTW01007 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BTW01007?
You can download the CKL12BTW01007 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BTW01007?
NKK Switches
