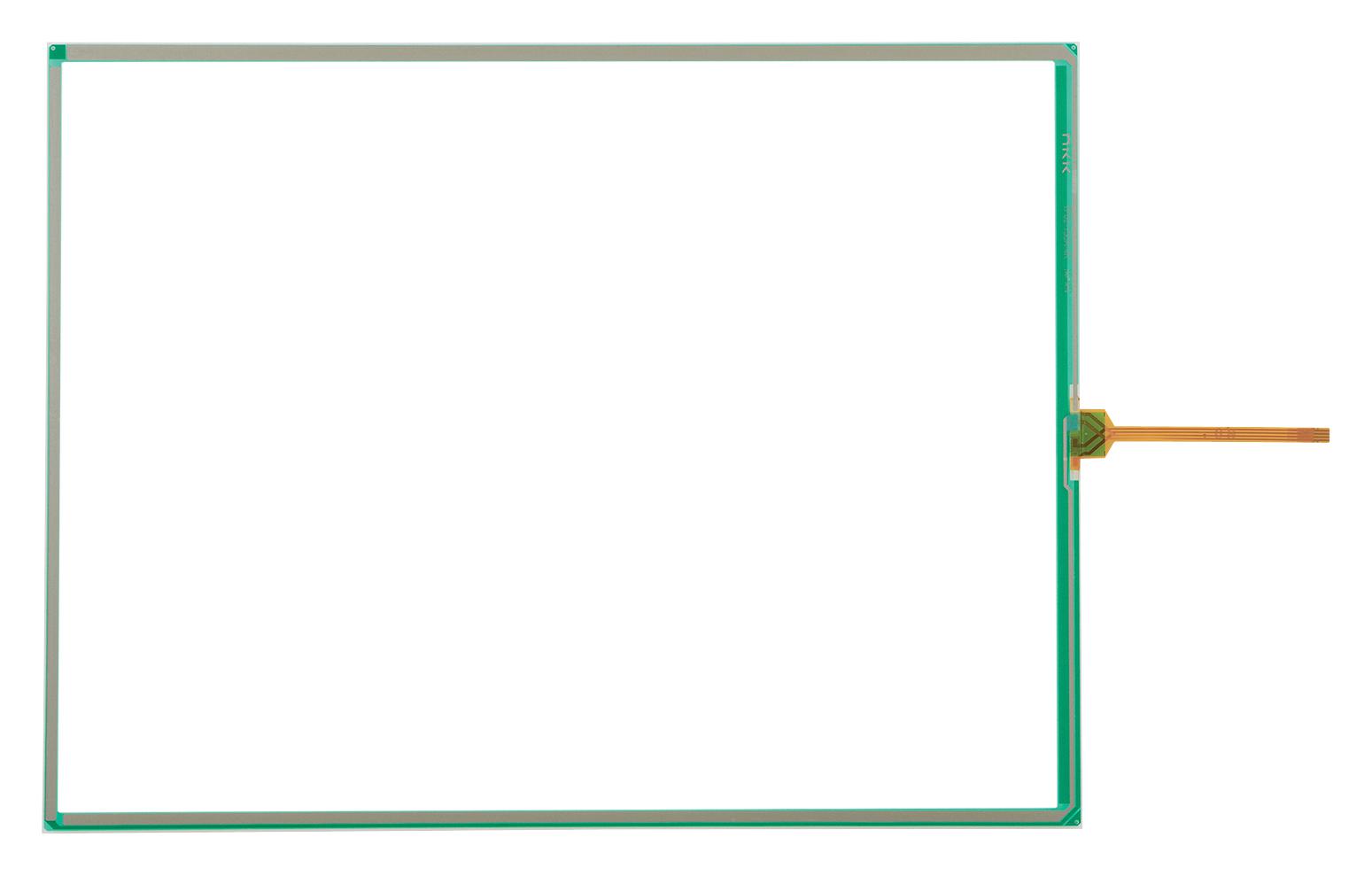

NKK Switches TP02150A4KB Resistive Touch Screen
The resistive film touch screen series TPO2 offers long-lasting stability with a minimum of 10 million operations, supporting various sizes from 10.4 to 19 inches. Designed with anti-glare and anti-Newton-ring coatings, these touch screens ensure high visibility and reliable performance even with light touches or gloves. Compatible with control boards supporting USB or RS232C interfaces, they are suitable for industrial, medical, and automation applications. Featuring hard coating for scratch resistance, flexible film configurations, and slim narrow frames, TPO2 screens deliver precise, sensitive input for diverse device integrations.
NKK Switches TP02150A4KB Resistive Touch Screen Specifications:
- Screen Sizes: 10.4”, 10.6” (Wide), 12.1”, 15”, 15.6” (Wide), 19”
- Power Level: 5.5 VDC, 1 mA resistive load
- XY Resistive Value: 250-850 Ω (Wide type 120-1,500 Ω)
- Linearity: 1.5% maximum
- Insulation Resistance: 10 MΩ minimum at 25V DC
- Expected Life: 50,000 operations (stylus, approx. 30 mm movement)
- Operating Life: 10,000,000 operations minimum
- Activation Force: 0.02-1 N maximum
- Chattering Time: 10 ms maximum
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -40°C to +80°C
- Light Transmission: 80% (typical)
- Surface Hardness: 3H or harder (Pencil hardness)
- Interface Options: RS232C (TPO2CS04CKS) or USB (TPO2CU04CKS)
- Dimensions vary by size; detailed specifications available externally
- Designed for durability, anti-glare surface, and reliable touch response
Buy the NKK Series TPO2 Resistive Touch Screen: TP02150A4K
Purchase the NKK resistive touch screen TP02150A4K online today—engineered for long-lasting performance with over 10 million operations, ideal for industrial, medical, and automation systems. Featuring anti-glare, scratch-resistant hard coating, and wide size options from 10.4 to 19 inches, this touch screen ensures sensitive, reliable input even with gloves or light touches. Compatible with USB and RS232C control boards, it is easy to integrate into various devices, offering durability, high visibility, and flexible installation options for professional applications. Order now for fast delivery and seamless operation.
Get NKK series TPO2 resistive touch screen TP02150A4K today—built for durability, precise response, and seamless device integration.
Frequently Asked Questions
Where can I buy NKK Switches TP02150A4KB?
You can click on the BUY or RFQ button to purchase TP02150A4KB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part TP02150A4KB?
You can download the TP02150A4KB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of TP02150A4KB?
NKK Switches
