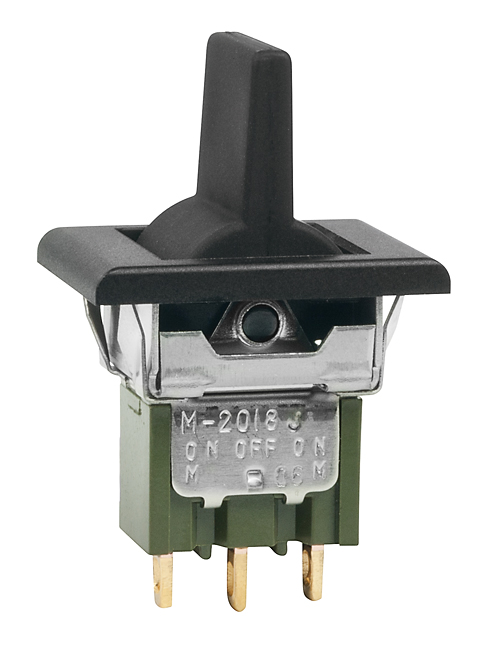

NKK Switches M2018TJG01GA1A Miniature Rocker Switch
This is a miniature rocker switch that supports multiple functions. It is designed for precise control in various electronic applications, offering reliable switching in a compact form factor.
NKK Switches M2018TJG01GA1A Miniature Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC
- Power Level (silver): 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 10 milliohms maximum for silver; 20 milliohms maximum for gold
- Insulation Resistance: 1,000 Megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum for silver; 50,000 operations minimum for gold
- Angle of Throw: 25°
- Materials & Finishes: Actuator stainless steel, Body diallyl phthalate resin UL94V-0, Movable/Stationary Contacts silver or gold-plated phosphor bronze, Terminals copper or brass with silver or gold plating
- Operating Temp Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Soldering: Wave soldering & manual soldering profiles available, actuator in OFF position during soldering
- Standards & Certifications: UL94V-0 flammability, UL recognized, CSA certified
Buy the Buy NKK Switches Series M Miniature Rockers Part Number M2018TJG01GA1A Online
Enhance your electronic projects with the reliable and compact miniature rocker switch. Designed for durability and precise control, this switch supports high load ratings and long-lasting operation. Perfect for industrial, automation, and control applications, it offers multiple mounting options, high insulation resistance, and certification standards to ensure safety and performance. Shop online now to get this essential component that combines quality, versatility, and durability for all your control needs.
Order your NKK Series M Miniature Rockers M2018TJG01GA1A today and give your electronic projects the reliable switching performance they deserve.
Frequently Asked Questions
Where can I buy NKK Switches M2018TJG01GA1A?
You can click on the BUY or RFQ button to purchase M2018TJG01GA1A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2018TJG01GA1A?
You can download the M2018TJG01GA1A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2018TJG01GA1A?
NKK Switches
