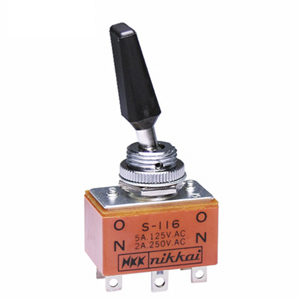

NKK Switches S116R Toggle Switch
Standard size toggle switch with low to high capacity rating, suitable for various electronic and electrical applications. This Series S toggle offers reliable performance with resistive and inductive load capacities up to 20A at 125V or 250V, and a mechanical life of minimum 30,000 to 50,000 operations depending on the model. Constructed with durable materials including brass with chrome plating, phenolic resin, and zinc-plated steel, it features options for splashproof sealing (IP67), quick connect or solder lug terminals, and supports panel thicknesses of up to 4.0mm. Recognized by UL and CSA certifications, it ensures compliance with industry standards.
NKK Switches S116R Toggle Switch Specifications:
- Electrical Capacity: Up to 20A at 125V or 250V for resistive and inductive loads
- Mechanical Life: 30,000 to 50,000 operations depending on model
- Materials: Brass with chrome plating, phenolic resin, steel with zinc plating, copper with silver plating
- Sealing: IP67 standard for splashproof models
- Maximum Panel Thickness: 4.0mm (0.158 inches)
- Operating Temperature Range: 30°C through +70°C for splashproof models; -10°C through +70°C for other models
- Terminals: Solder lug, quick connect, or panel seal configurations
- Certifications: UL Recognized, CSA Certified
- Soldering & Installation: Recommended soldering profile, mounting torque of approximately 1.47 Nm (13 in-lb) for single nut, 2.94 Nm (26 in-lb) for double nut
Buy the NKK Series S Toggle Switch: S116R
Enhance your electrical systems with this reliable Series S toggle switch, designed for durability and high capacity. Made with high-quality materials including brass, phenolic resin, and zinc-plated steel, it offers excellent resistance to harsh environments with splashproof IP67 sealing. Suitable for panel thicknesses up to 4.0mm, it supports multiple wiring options—solder lug and quick connect—and is certified by UL and CSA for safety compliance. Perfect for industrial, commercial, and electronic applications requiring dependable switching performance. Purchase online today to secure fast delivery and professional-grade quality for your next project!
Order your NKK Series S toggle switch today and ensure reliable performance with high load capacities and IP67 splashproof sealing for your electrical projects.
Frequently Asked Questions
Where can I buy NKK Switches S116R?
You can click on the BUY or RFQ button to purchase S116R from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S116R?
You can download the S116R datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S116R?
NKK Switches
