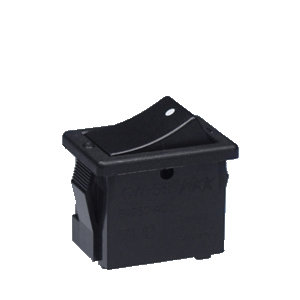

NKK Switches CWSB11AA3H Miniature Power Rocker Switch
This miniature rocker switch offers reliable performance with a snap-in mounting feature, high insulation resistance, and suitable for electronic device panels. Constructed with durable polycarbonate and polyamide housing, it provides resistive load capacity of 6A at 250V AC and has a mechanical life of at least 30,000 operations. The switch features silver alloy contacts, a 30° angle of throw, and is rated for operation at temperatures from -10°C to +70°C, making it ideal for various industrial and consumer electronics applications.
NKK Switches CWSB11AA3H Miniature Power Rocker Switch Specifications:
- Electrical Capacity: 6A @ 250V AC resistive load
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC between contacts, 3,000V AC between contacts and case
- Mechanical Life: 30,000 operations
- Temperature Range: -10°C to +70°C (+14°F to +158°F)
- Housing Material: Polyamide
- Rocker Material: Polycarbonate
- Contact Material: Silver alloy
- Nominal Operating Force: 2.0N
- Angle of Throw: 30°
- Terminals: Snap-in mounting
Buy the NKK Series CW Miniature Power Rockers: CWSB11AA3H
Purchase the NKK CWSB11AA3H miniature rocker switch online today and enjoy quick, hassle-free installation with reliable operation. Designed for durability, it features snap-in mounting, silver alloy contacts, and a resistance capacity of 6A at 250V AC. Perfect for electronic panels, automation, and industrial equipment, this switch ensures long-lasting performance with a mechanical life of over 30,000 operations. Upgrade your equipment with this high-quality, affordable switch available for online ordering now.
Buy NKK CWSB11AA3H miniature rocker switch now and experience unmatched reliability and performance for your electronic panels and industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches CWSB11AA3H?
You can click on the BUY or RFQ button to purchase CWSB11AA3H from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CWSB11AA3H?
You can download the CWSB11AA3H datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CWSB11AA3H?
NKK Switches
