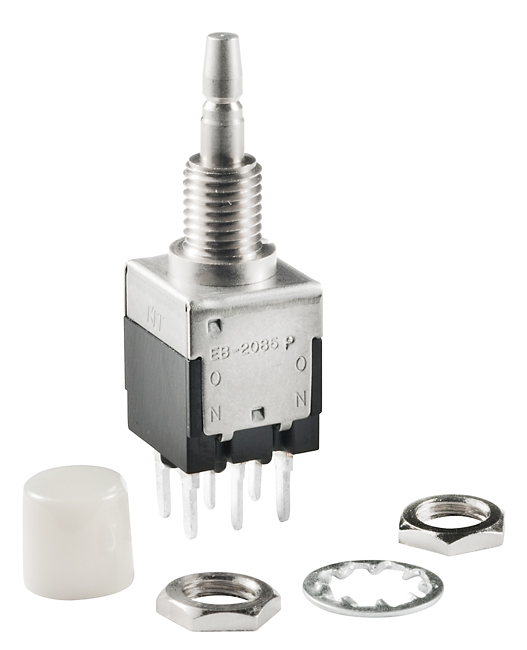

NKK Switches EB2085PBB Miniature Pushbutton Switch
Miniature pushbutton switch designed for bushing mount installation, suitable for electronic and control panels where space-saving and reliable actuation are essential. It features high electrical capacity, corrosion-resistant stainless steel frame, and heat-resistant resin casing meeting UL 94V-0 flammability standards. Capable of handling 3A at 125V AC for silver contacts and 0.4VA at 28V AC/DC for gold contacts, it supports high durability with up to 100,000 mechanical operations. Its compact size, splash-proof epoxy sealed terminals, and multiple mounting options make it ideal for precise control applications in industrial environments.
NKK Switches EB2085PBB Miniature Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC (silver contacts), 0.4VA max @ 28V AC/DC (gold contacts)
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1000 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts for 1 minute; 1500V AC between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum
- Operating Force: 2.35N for single pole momentary, 2.65N for alternate action
- Travel: Pretravel approximately 0.047 inches (1.2mm) for momentary, 0.071 inches (1.8mm) for alternate action
- Environmental Resistance: -10°C to +70°C, 90-95% humidity for 96 hours, shock resistance 50G
- Material: Brass with chrome or nickel plating, stainless steel frame, UL94V-0 heat resistant resin case
- Mounting: Bushing mount with torque 1.47Nm (13.0 lbf.in), or snap-in
- Certification: UL 94V-0 flammability, recognized with UL and CSA when ordered accordingly
Buy the NKK Series EB Light Touch Pushbuttons: EB2085PBB
Order the NKK Series EB lightweight, compact pushbutton switch online today to enhance your control panels. Featuring epoxy sealed terminals, high durability, and UL certification, it supports efficient, reliable operation. With a 3A @ 125V AC capacity for silver contacts and robust construction, this switch is ideal for electronic and industrial control applications. Its corrosion-resistant stainless steel frame, multiple mounting options, and heat-resistant casing ensure long-lasting performance. Purchase now for quick delivery and seamless integration into your control systems.
Buy NKK Series EB EB2085PBB now and experience unmatched reliability and performance in control panel applications.
Frequently Asked Questions
Where can I buy NKK Switches EB2085PBB?
You can click on the BUY or RFQ button to purchase EB2085PBB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part EB2085PBB?
You can download the EB2085PBB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of EB2085PBB?
NKK Switches
