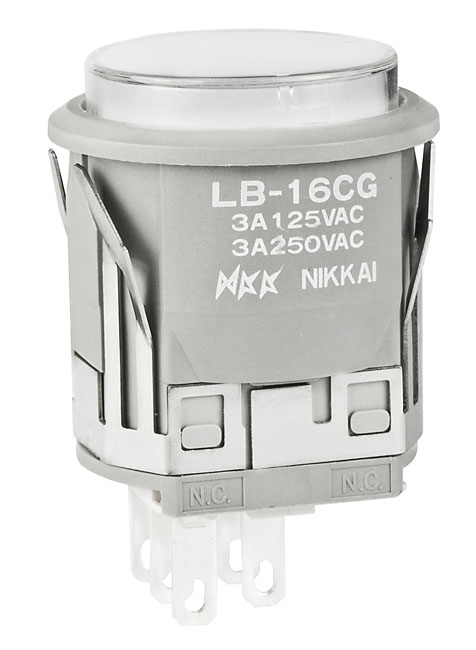

NKK Switches LB16CGW016BJB Pushbutton Switch
The standard size illuminated pushbutton switch with snap-in mounting is designed for control panels and electronic devices, offering reliable operation and visual feedback. Equipped with bright LED illumination options, it provides enhanced visibility and user-friendly control features. The switch features a durable polycarbonate housing, sealed IP65 for protection against dust and water, and various LED colors and lens options for customization. It supports circuit ratings up to 3A at 125/250V AC, with a mechanical life exceeding 1 million operations, making it suitable for demanding industrial applications.
NKK Switches LB16CGW016BJB Pushbutton Switch Specifications:
- Housing Material: Polycarbonate with gloss finish
- Sealing: IP65 (IEC 60529 compliant)
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC contacts-to-case, 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Contact Type: Nonshorting (break-before-make)
- Pretravel: 1.5mm, Overtravel: 1.5mm, Total Travel: 3.0mm
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (non-illuminated)
- Appearance: Bright LED illumination with customizable lens and diffuser colors
- Mounting: Snap-in panel, suitable for panels with thickness 1.0mm to 4.0mm
- LED Options: Single color, bi-color, super bright with resistor options
- Standards & Certifications: Recognized at 3A @ 125/250V AC, IP65 sealing, UL and CSA recognized when ordered with markings
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB16CGW016BJB Online
Enhance your control systems with the NKK Series LB16CGW016BJB illuminated pushbutton, featuring IP65 sealing, bright LED options, and a durable design. Perfect for industrial applications requiring reliable operation and visual indication, this switch offers easy snap-in mounting and high circuit ratings. Its long mechanical life and customizable LED colors make it an ideal choice. Purchase online now to ensure quality and quick delivery for your control panel needs, backed by industry standards and recognized certifications.
Order your NKK Series LB16CGW016BJB illuminated snap-in pushbutton today and enhance your control panel with reliable, industry-grade performance.
Frequently Asked Questions
Where can I buy NKK Switches LB16CGW016BJB?
You can click on the BUY or RFQ button to purchase LB16CGW016BJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CGW016BJB?
You can download the LB16CGW016BJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CGW016BJB?
NKK Switches
