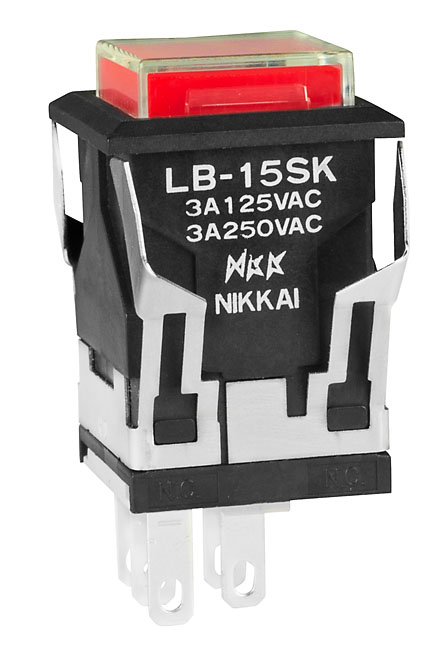

NKK Switches LB15SKW0101JC illuminated pushbutton switch
This standard size illuminated pushbutton switch features snap-in mounting for straightforward installation and offers bright, full surface illumination with front panel relamping. It is available with single or bi-color LEDs in various colors, including red, green, blue, amber, and white, providing excellent visual feedback. The switch's durable construction includes a glass fiber reinforced polyamide housing, stainless steel mounting clips, and epoxy-sealed solder lug and quick connect terminals. Suitable for industrial applications, it offers reliable operation, long electrical life, and environmental resilience with certifications: UL, cULus, CSA, and IP65 panel sealing. It supports a maximum rated load of 3A at 125/250V AC and features optional accessories like protective guards and dust covers for enhanced protection.
NKK Switches LB15SKW0101JC illuminated pushbutton switch Specifications:
- Electrical Capacity: 3A @ 125V AC & 250V AC, 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms max. for silver, 100 milliohms max. for gold
- Insulation Resistance: 200 megohms min. @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for maintained circuits
- Nominal Operating Force: not specified
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total travel 0.118” (3.0mm)
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Switch Terminals: Solder lug and .110” quick connect, epoxy sealed
- Environmental Conditions: Operating temperature range -25°C to +50°C (illuminated) and -25°C to +70°C (non-illuminated); 90-95% humidity for 96 hours @ 40°C; vibration 1.5mm amplitude, 50G shocks
- Certification Standards: UL, cULus, CSA, IP65 for panel sealed models
- Mounting Clips: Stainless steel
- Panel Thickness: 0.039” to 0.157” (1.0mm to 4.0mm)
- Rated Load: 3A @ 125V or 250V AC, 0.4VA @ 28V AC/DC
- LED Compatibility: Single and bi-color LEDs, bright, super bright, or with resistors, various colors including red, green, blue, amber, white
- Accessories: Protective guards, dust covers, snap-in mounting clips
Buy the Rock Solid 0101 – Reliable Illuminated Pushbutton Switch for Industrial Applications
Order the NKK illuminated pushbutton switch LB15SKW0101JC online today and enjoy a durable, easy-to-install solution for industrial control panels. Featuring bright LED illumination, robust construction, and IP65 sealing, this switch ensures reliable operation across various environments. Perfect for automation, machinery, and control systems, it provides long electrical life and environmental resilience. With optional accessories like protective guards and dust covers, it offers comprehensive protection. Shop online now and enhance your control solutions with premium quality, easy installation, and proven reliability.
Buy NKK illuminated pushbutton switch LB15SKW0101JC now and experience unmatched reliability, bright illumination, and easy snap-in installation.
Frequently Asked Questions
Where can I buy NKK Switches LB15SKW0101JC?
You can click on the BUY or RFQ button to purchase LB15SKW0101JC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15SKW0101JC?
You can download the LB15SKW0101JC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15SKW0101JC?
NKK Switches
