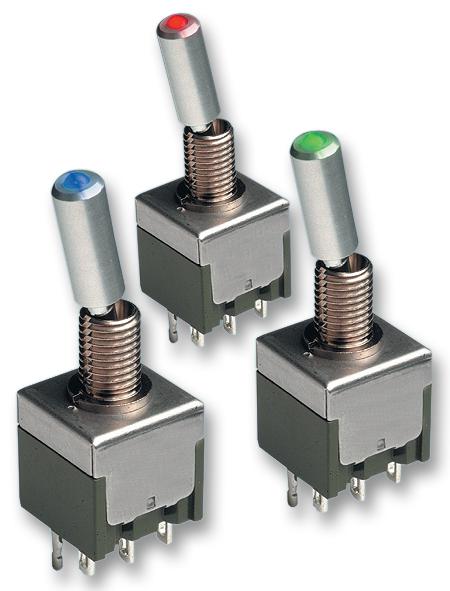

NKK Switches M2113TCFW01 LED Toggle Switch
The M2113TCFW01 is a durable single-pole double-throw LED toggle switch with solder lug terminals, featuring independent or synchronous red and green LED indicators. Its stainless steel housing and UL94V-0 base ensure corrosion resistance and safety. Designed with anti-jamming features and a high-torque bushing, it provides stable installation and reliable operation. The switch has a contact resistance of 10 milliohms maximum, insulation resistance of at least 1000 megaohms, and supports 50,000 mechanical and 25,000 electrical life cycles, suitable for industrial control systems.
NKK Switches M2113TCFW01 LED Toggle Switch Specifications:
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC, 3A at 30V DC
- Contact Resistance: 10 milliohms maximum for silver alloy contacts
- Insulation Resistance: Minimum 1000 megaohms at 500V DC
- Dielectric Strength: 1000V AC minimum between contacts, 1500V AC minimum between contacts and case
- Mechanical Life: 50,000 cycles
- Electrical Life: 25,000 cycles
- Nominal Operating Force: Not specified
- Materials & Finishes: Housing stainless steel, base UL94V-0 diallyl phthalate, bushing brass nickel-plated, contacts silver alloy
- Environmental Data: Operating temperature -10°C to +55°C, humidity 90-95% for 96 hours, vibration and shock resistance specified
- Mounting Torque & Soldering: Not specified
- Standards & Certifications: UL Recognized, CSA Certified
Buy the Nihon Kaiheiki Series M2100 LED Toggle Switch: M2113TCFW01
Discover the high-quality Nihon Kaiheiki Series M2100 LED toggle switch M2113TCFW01, featuring durable stainless steel housing, solder lug terminals, and independent multi-color LED indicators. Designed for industrial and control panel applications, this switch offers reliable performance with a long operational life of 50,000 cycles mechanically and 25,000 cycles electrically. With its corrosion-resistant components and certified safety standards, this switch ensures stable, safe, and efficient operation in demanding environments. Purchase online today for dependable control solutions.
Order your Nihon Kaiheiki Series M2100 LED toggle switch M2113TCFW01 today and ensure reliable, corrosion-resistant control for your industrial projects.
Frequently Asked Questions
Where can I buy NKK Switches M2113TCFW01?
You can click on the BUY or RFQ button to purchase M2113TCFW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2113TCFW01?
You can download the M2113TCFW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2113TCFW01?
NKK Switches
