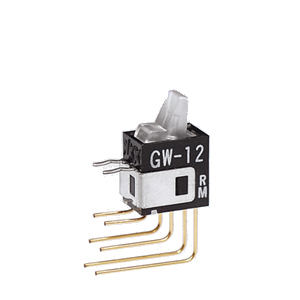

NKK Switches GW12LJVCF Illuminated Paddle Switch
The GW12LJVCF is a compact, illuminated paddle switch designed for PCB mounting applications. Its miniature form factor is ideal for space-constrained electronic devices, offering reliable control with enhanced visibility through integrated LEDs in red, green, or amber. The switch features a specially designed mechanism providing crisp actuation feedback, positive circuit transfer indication, and high contact reliability. Its insert molded terminals prevent contamination entry, making it suitable for low-voltage, low-current logic-level circuits. This versatile switch combines durability, performance, and visibility, perfect for industrial control, automation, and electronic systems.
NKK Switches GW12LJVCF Illuminated Paddle Switch Specifications:
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Capacity (Resistive Load): 0.4VA max @ 28V AC/DC, applicable range 0.1mA to 0.1A
- Actuator Material: UL94V-0 polycarbonate resin
- Case Material: UL94V-0 glass fiber reinforced polyamide
- Environmental Durability: Operating temperature -25°C to +55°C, 90-95% humidity for 240 hours, vibration 10-55Hz peak-to-peak 1.5mm, shock 50G
- Terminal Spacing: 2.54mm (0.100") standard PCB grid spacing
- LED Colors Available: Red, Green, Amber, Bicolor (Red/Green)
- LED Forward Voltage: Approximately 2.0V-2.1V, Forward Peak Current: 25mA
- LED Reverse Voltage: 4V max
- Mounting: Straight or right-angle PCB terminals
- Dimensions: Miniature size, specific dimensions conforming to small form factor for space-constrained applications
Buy the NKK Series GW Illuminated Paddle Switch: GW12LJVCF
Discover the NKK Series GW12LJVCF illuminated paddle switch, designed for space-saving PCB applications. With LED indicators in multiple colors, it offers reliable control, crisp click feedback, and high contact stability. Perfect for industrial controls, automation, and electronic projects where visibility and longevity matter. Easy to mount, durable, and compliant with industry standards, this switch ensures smooth operation and clear status indication, making it an ideal choice for engineers seeking performance, visibility, and compact design for their electronic systems.
Order your NKK Series GW12LJVCF illuminated paddle switch today and enhance your device visibility and control reliability with this compact, high-performance switch.
