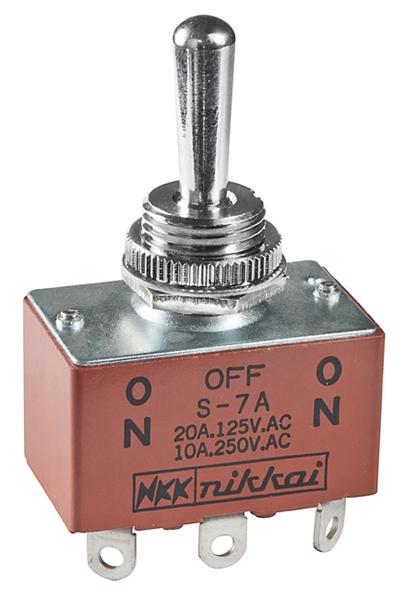

NKK Switches S7A DPDT Toggle Switch
A medium-sized DPDT toggle switch with ON-OFF-ON positions, suitable for solder lug connections. Designed for reliable switching applications in electronic circuits, it supports resistive and inductive loads up to 20A at 125V. The switch features a robust construction with a chrome-plated brass body, phenolic resin insulator, and zinc-plated steel mounting hardware. It is environment-resistant with an operating temperature range of -10°C to +70°C and meets IP67 sealing standards for splashproof applications. This switch ensures dependable performance in industrial control systems and electronic devices.
NKK Switches S7A DPDT Toggle Switch Specifications:
- Body Material: Brass with chrome plating
- Insulator Material: Phenolic resin
- Mounting Hardware: Steel with zinc plating
- Operating Temp Range: -10°C to +70°C
- Sealing: IP67 standard for splashproof and environmental resistance
- Electrical Capacity: Up to 20A at 125V, resistive and inductive loads
- Terminal Type: Solder lug connections
- Number of Positions: ON-OFF-ON
- Switch Type: DPDT (Double Pole Double Throw)
- Standards & Certifications: Recognized to UL and CSA standards
- Maximum Panel Thickness: 4.0 mm (0.158 inches)
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Temperature Rating: -10°C to +70°C
Buy the NKK S7A – Reliable DPDT Toggle for Industrial Applications
Purchase the NKK Series S7A double pole double throw toggle switch online today. Built for durability, it offers reliable switching for electronic and industrial systems. Its rugged construction features a chrome-plated brass body, phenolic insulator, and zinc-plated steel hardware, supporting resistive and inductive loads up to 20A at 125V. The switch meets IP67 standards for splashproof protection and operates reliably within temperatures from -10°C to +70°C. Ideal for control panels, automation, and industrial equipment, ensuring prolonged service life and dependable performance.
Order your NKK Series S7A double pole double throw toggle switch today and give your electronic projects the dependable quality they deserve.
Frequently Asked Questions
Where can I buy NKK Switches S7A?
You can click on the BUY or RFQ button to purchase S7A from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S7A?
You can download the S7A datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S7A?
NKK Switches
