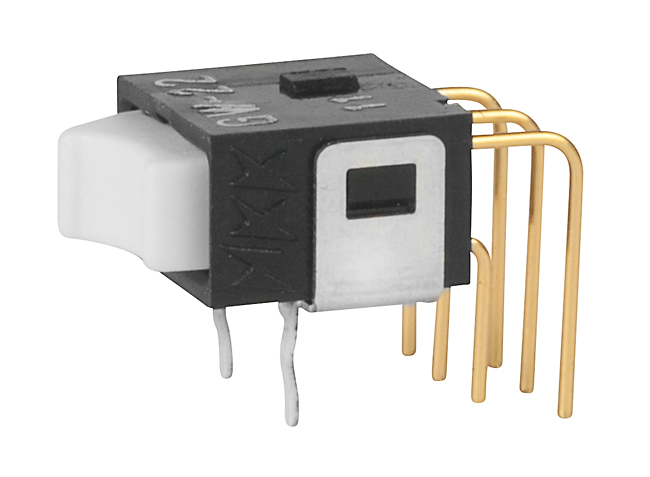

NKK Switches GW22RBH Ultra-Thin Rocker Switch
This ultra-thin rocker switch series GW offers reliable, low-voltage, low-current operation for compact electronic equipment. Featuring elegant, slim design, tactile feel, and positive actuation with a protected, epoxy-sealed terminal layout, the switches are ideal for high-density PCB mounting in handheld devices and control panels. They meet UL94V-0 flammability standards, operate from -30°C to +85°C, and support up to 50,000 mechanical and electrical cycles. Suitable for logic-level circuits, these switches are constructed from glass fiber reinforced polyamide and phosphor bronze contacts with gold plating.
NKK Switches GW22RBH Ultra-Thin Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 80 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC for 1 minute
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: Rockers 1.70N; Paddles 1.30N
- Angle of Throw: 28°
- Temperature Range: -30°C to +85°C
- Humidity Resistance: 95% for 240 hours @ 40°C
- Soldering: Wave and manual soldering profiles specified
- Materials: Actuator and case made from UL94V-0 rated glass fiber reinforced polyamide, contacts from phosphor bronze with gold plating, terminals with tin plating
- Sealing: Epoxy sealed terminals to prevent flux ingress
- Standards & Certifications: Flammability UL94V-0, not UL or CSA recognized but designed for low-voltage logic applications
