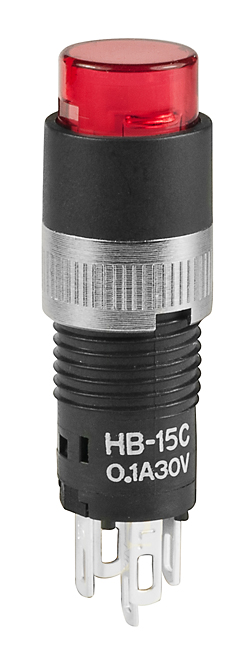

NKK Switches HB15CKW015CCB Subminiature Pushbutton Switch
The HB15CKW01-5C-CB is a compact, single-pole double-throw (SPDT) subminiature pushbutton switch with an on-(on) non-shorting, break-before-make configuration. It features silver-plated phosphor bronze contacts, a glass fiber reinforced polyamide base, a black housing, solder lug terminals, and a red LED cap. Designed for front panel mounting with a rear threaded mount, it has an 8mm body diameter, fits common panel cutouts, and includes a latch-down circuit indicator. The dual sliding contacts ensure contact reliability and durability, with molded-in terminals providing contamination resistance. Electrical specs include 50 milliohm contact resistance, 100 megaohms insulation resistance, 100,000 mechanical cycles, and 50,000 electrical cycles, suitable for industrial and automation applications.
NKK Switches HB15CKW015CCB Subminiature Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide
- Housing Color: Black
- Body Diameter: 8mm
- Panel Depth: Less than 1 inch
- Mounting: Front panel with rear threaded mount
- Electrical Capacity: 0.1A @ 30V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 100 megaohms minimum at 500V DC
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 3.43N
- Total Travel: 0.118 inches (3.0mm)
- Pretravel: 0.087 inches (2.2mm)
- Overtravel: 0.031 inches (0.8mm)
- Contact Material: Silver-plated phosphor bronze
- Environmental Temp Range: -25°C to +50°C
- Shock Resistance: 50G in 6 directions
- Soldering: Manual soldering, profile A
- Standards & Certifications: UL Recognized when ordered with marking
- Rated Voltage: Max 30V AC/DC
- Contact Resistance: Max 50 milliohms
- Insulation Resistance: Min 100 megaohms
- Certifications: Recognized under File No. E44145 when ordered accordingly
Buy the NKK Series HB Subminiature Pushbuttons: HB15CKW01-5C-CB
Order the NKK HB15CKW01-5C-CB subminiature pushbutton switch today online. Its durable design features a black housing, silver-plated contacts, and a red LED indicator. Ideal for industrial control panels, it offers break-before-make action, high contact stability, and a long operational life of at least 100,000 mechanical cycles. Its compact size with an 8mm body diameter and panel thickness compatibility makes installation straightforward. This switch's reliable electrical performance and contamination protection make it a top choice for demanding automation and control systems.
Buy NKK HB15CKW01-5C-CB now and experience unmatched reliability and performance in industrial control applications.
