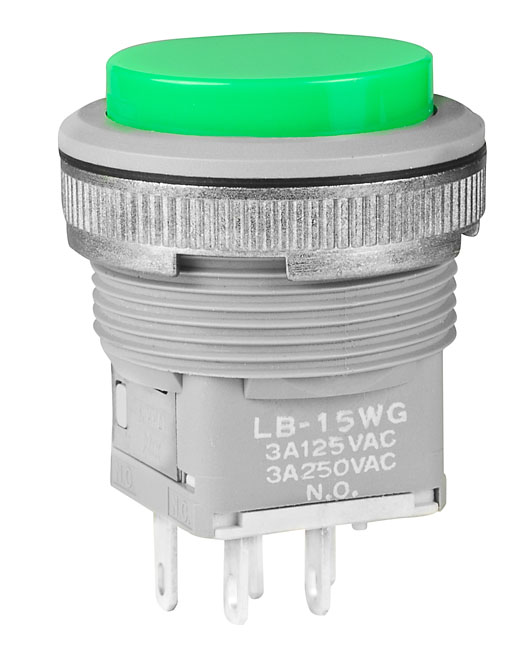

NKK Switches LB15WGW01FJ Waterproof Pushbutton Switch
The Standard Size Waterproof Illuminated Pushbutton Switch series LB is designed for durable and reliable operation in harsh environments. It features a comprehensive diffusion and filtering system that produces bright, full surface illumination with front panel relamping options. The switch offers various lighting options including single and bicolor LEDs in colors such as white, green, blue, red, amber, and green, with choices for super bright LEDs. Constructed with stainless steel clips for secure mounting on panels of varying thicknesses, it has a latchdown feature indicating circuit status, tactile and audible feedback, and a snap-action contact mechanism ensuring long electrical life and sensitivity. IP65 panel sealing complies with IEC60529 standards, similar to NEMA 4 & 13, while its compact design minimizes behind-panel depth. Matching indicators are available for enhanced functionality.
NKK Switches LB15WGW01FJ Waterproof Pushbutton Switch Specifications:
- Electrical Capacity (Resistive Load): 3A @ 125V AC or 3A @ 250V AC or 3A @ 30V DC
- Nominal Operating Force: 5.39N
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Travel: Pretravel 1.5mm; Overtravel 1.5mm; Total Travel 3.0mm
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Humidity Resistance: 90-95% RH for 96 hours @ 40°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G acceleration
- Sealing: IP65 compliant per IEC60529 (similar to NEMA 4 & 13)
- Mounting Torque: 1.96Nm (17.35 in-lb)
- Housing Color: Black
- Contact Resistance: 50 milliohms maximum for silver, 100 milliohms for gold
- Insulation Resistance: 200 Megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts & case for 1 min
- Soldering Temperature & Time: Refer to manufacturer guidelines
- Standards & Certifications: UL Recognized, CSA Certified, IEC60529 IP65
Buy the Buy NKK Switches Series LB Part Number LB15WGW01FJ Online
Order the NKK Series LB waterproof illuminated pushbutton switch today to ensure high durability and reliable operation in harsh environments. Featuring bright LED illumination options, IP65 sealing for dust and water resistance, and secure mounting with stainless steel clips, this switch is ideal for industrial automation, machinery, and control panels. Its compact design minimizes behind-panel depth, while the tactile and audible feedback guarantees precise activation. Shop online now to benefit from fast delivery and excellent customer support.
Buy NKK Switches LB15WGW01FJ waterproof switch now and experience unmatched reliability and performance in demanding industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches LB15WGW01FJ?
You can click on the BUY or RFQ button to purchase LB15WGW01FJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15WGW01FJ?
You can download the LB15WGW01FJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15WGW01FJ?
NKK Switches
