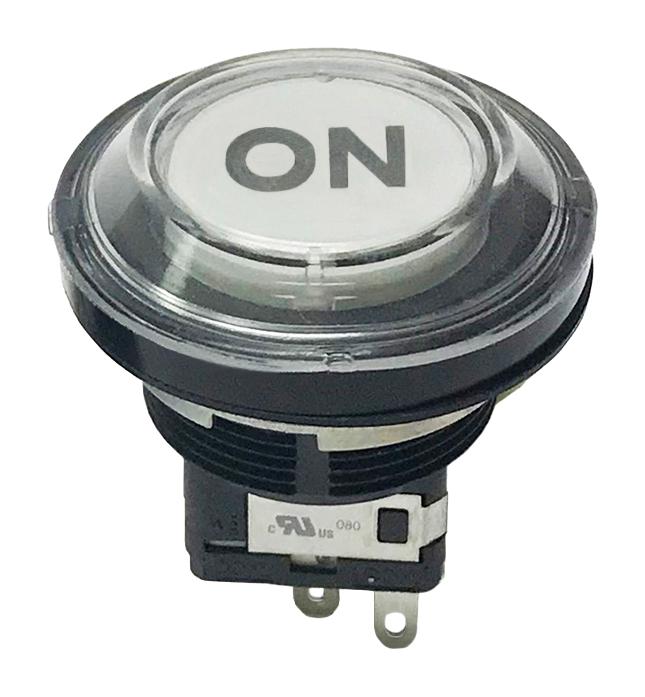

NKK Switches LB16VA001 Sealed Pushbutton
The IP65 Panel Seal Pushbutton with Legend & Splash Cover series LB offers a durable and splash-proof design suitable for industrial environments. It features a round splash cover, polycarbonate lens with laser-etched legend, and a robust construction that ensures IP65 sealing. The switch is rated for 3A at 125V AC or 250V AC, with resistive load capacity and excellent electrical durability of over 200,000 operations. Its high-quality materials and precise sealing make it ideal for controlling machinery and equipment in demanding settings, ensuring safety and reliability.
NKK Switches LB16VA001 Sealed Pushbutton Specifications:
- Electrical Capacity: 3A at 125V AC or 250V AC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1000V AC minimum for 1 minute
- Mechanical Life: 200,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Operating Temperature Range: -13°F to +122°F (25°C to 50°C)
- Vibration Resistance: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock Resistance: 50G acceleration
- Sealing: IP65 IEC 60529
- Housing Material: Liquid crystal polymer UL94V-0
- Switch Terminals: Phosphor bronze with silver plating
- Plunger Travel: Total 0.118” (3.0mm)
- Cap Material: Polycarbonate with laser-etched legend
- Mounting: Bushing mount with Ø 22mm diameter
- Operating Force: 5.39N
- Soldering Temp: 390°C for 4 seconds, 2 cycles
- Standards & Certifications: RoHS compliant, UL listed housing and base
Buy the NKK Series LB IP65 Pushbutton: LB16VA001
Order the NKK Series LB16VA001 IP65 sealed pushbutton with legend and splash cover online today. Designed for harsh environments, it offers reliable switching with high durability. Featuring a transparent laser-etched legend, splash-proof construction, and easy mounting, this switch is perfect for industrial control panels. Its resistive load capacity of 3A at 125/250V AC, IP65 sealing, and high mechanical lifespan ensure optimal performance. Shop now to secure a dependable, weatherproof pushbutton for your equipment needs.
Buy NKK Series LB16VA001 IP65 sealed pushbutton now and experience unmatched durability and precise control for industrial applications.
Frequently Asked Questions
Where can I buy NKK Switches LB16VA001?
You can click on the BUY or RFQ button to purchase LB16VA001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16VA001?
You can download the LB16VA001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16VA001?
NKK Switches
