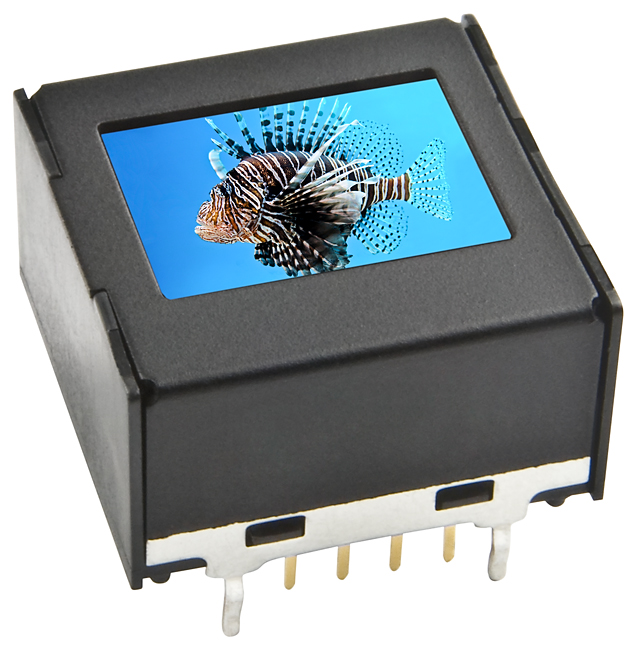

NKK Switches ISC01P Color OLED Display Module
This 52x36 pixel color OLED display module offers vibrant visuals with 65,536 colors and high contrast, enabling clear, sharp images for electronic projects. Featuring a compact 12.9mm by 9.9mm viewing area, it uses organic LED technology with a full 180° viewing angle. It's operated via serial SPI interface, supporting high resolution with 52RGB x 36 pixels and a lifespan of up to 30,000 hours at 100cd/m². Suitable for industrial automation, control systems, and advanced electronic devices, it ensures reliable performance with low power consumption and robust dust-tight construction.
NKK Switches ISC01P Color OLED Display Module Specifications:
- Display Device: Color OLED display module
- Display Mode: Passive matrix
- Viewing Area: 12.9mm x 9.9mm
- Pixel Format: 52RGB x 36 pixels
- Pixel Size: 0.21mm x 0.22mm
- Interface: Serial (SPI)
- Number of Colors: 65,536 colors or 256 colors in 8-bit mode
- Operating Temperature Range: 20°C to +70°C
- Storage Temperature Range: -30°C to +80°C
- Operating Life: 30,000 hours at 100cd/m² or 60,000 hours at 50cd/m²
- Supply Voltage for Logic: 0.3V to +4.0V
- Supply Voltage for Drive: 0.0V to +19.0V
- Power Consumption: Approximately 2.4mA in active mode
- Contrast Ratio: ≥10
- Full Viewing Angle: 180°
- Dust-tight construction, with secure mounting features
Buy the SmartSwitch 052RGB36 U– Reliable Color OLED for Industrial Applications
Enhance your electronic projects with this high-resolution, vibrant 52x36 pixel OLED display module. Featuring 65,536 colors, wide viewing angles, and a long operating lifespan, it delivers sharp visuals and dependable performance in industrial automation, control systems, and consumer electronics. Its serial SPI interface ensures easy integration with existing systems. Low power consumption combined with dust-tight construction makes it suitable for demanding environments. Purchase online today and upgrade your device with this durable, high-contrast OLED display module designed for professional use.
Buy SmartSwitch 052RGB36 now and experience unmatched reliability, vibrant visuals, and long-lasting performance for your electronic projects.
Frequently Asked Questions
Where can I buy NKK Switches ISC01P?
You can click on the BUY or RFQ button to purchase ISC01P from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ISC01P?
You can download the ISC01P datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ISC01P?
NKK Switches
