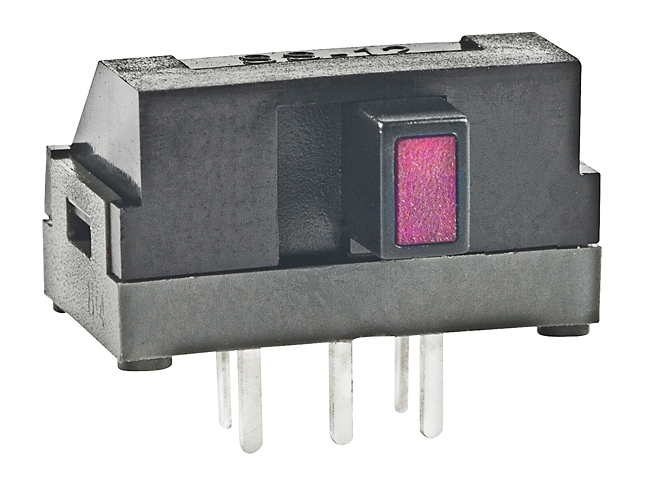

NKK Switches SS12SDH2LC Illuminated Slide Switch
The Ultra-Miniature Illuminated Slides Series SS are compact, reliable switch components designed for printed circuit board mounting. They feature LED illumination at the actuator tip, high contact reliability with self-cleaning sliding twin contact mechanism, and conform to industry standards for low-voltage, low-current applications. Available in top or side actuation with different pole and circuit configurations, these switches are ideal for precise electronic controls, offering crisp actuation indicators and durable thermoplastic and thermoset housing for enhanced longevity. Suitable for a variety of industrial and consumer electronic devices requiring dependable switch solutions.
NKK Switches SS12SDH2LC Illuminated Slide Switch Specifications:
- Electrical Capacity: 0.1A @ 30V DC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum 1 minute
- Mechanical Life: 10,000 operations minimum
- Electrical Life: 10,000 operations minimum
- Total Travel: 0.079" (2.0mm)
- Actuator Material: Polyacetal
- Housing Material: Polyacetal, glass fiber reinforced polyester
- Contact Material: Phosphor bronze with silver plating
- LED Circuit: Isolated, with LED colors including Red, Yellow, Green
- LED Forward Current: 16mA
- LED Forward Voltage: 1.98V to 2.16V depending on color
- Operating Temperature Range: -15°C to +60°C
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm
- Shock Resistance: 50G (490m/s²)
- Soldering: Wave and manual soldering compatible with specified profiles
- Standards & Certifications: Designed per industry standards, not UL recognized
Buy the Buy NKK Ultra-Miniature Illuminated Slide Switch Part Number SS12SDH2LC Online
Enhance your electronic assemblies with the NKK Series SS12SDH2LC ultra-miniature illuminated slide switch. Featuring LED indicators for clear circuit status, these compact switches are engineered for PCB mounting in low-voltage, low-current applications. They offer reliable mechanical and electrical performance, with a durable construction of thermoplastic and thermoset materials. Perfect for control panels, instrumentation, and consumer electronics, ordering online ensures quick delivery, competitive prices, and seamless integration into your designs. Trust NKK's quality for your critical electronic controls.
Order your NKK Series SS12SDH2LC ultra-miniature illuminated slide switch today and elevate your electronic projects with dependable, compact switch solutions.
Frequently Asked Questions
Where can I buy NKK Switches SS12SDH2LC?
You can click on the BUY or RFQ button to purchase SS12SDH2LC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part SS12SDH2LC?
You can download the SS12SDH2LC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of SS12SDH2LC?
NKK Switches
