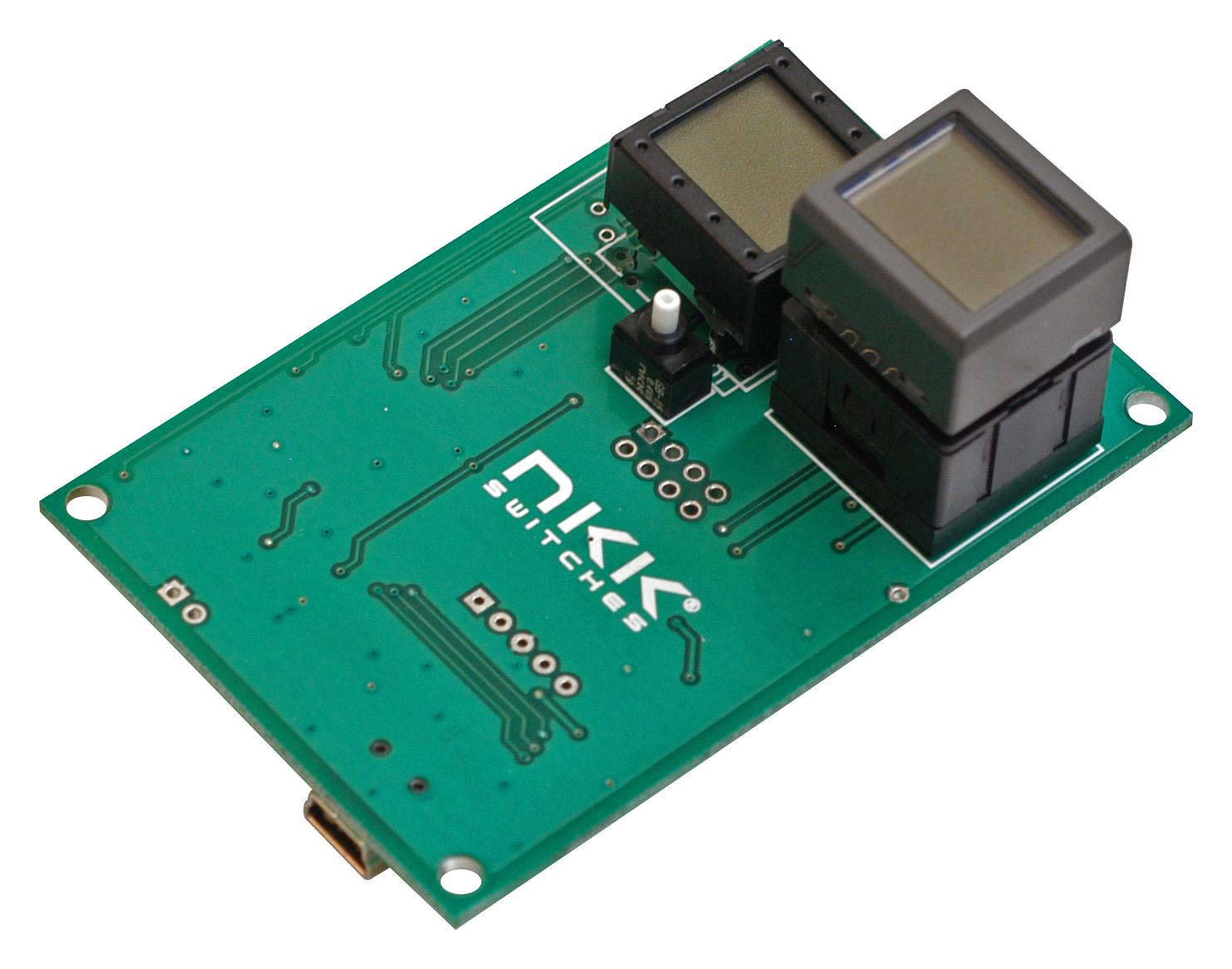

NKK Switches ISENGKIT5DC SmartSwitch Development Kit
The IS-ENG-KIT-5-DC from NKK Switches is an engineering development kit featuring SmartSwitch® technology. It controls two 36 x 24 RGB LCD displays, enabling engineers to test and integrate SmartSwitch into various applications. The kit includes the S0205 controller, schematics, firmware, source code in C language, on-board memory, and a USB connection. It supports serial communication at 115.2K baud rate and offers an auxiliary port with seven I/O pins for custom control or sensing. The system can operate standalone or in real-time, with programmable features such as changing displayed images based on switch activation or timers. The kit can be programmed using a PICKIT3 debugger and can be powered via USB or an external 5V power supply. It includes two LCD switches: a 36x24 RGB display and a compact similar display, with 1MB onboard NOR flash memory for storing images and data. Maximum current is 150mA at 5V.
NKK Switches ISENGKIT5DC SmartSwitch Development Kit Specifications:
- Controller: S0205 with 1MB NOR flash memory
- Displays: Two 36 x 24 RGB LCD screens
- Communication Port: USB (115.2K baud)
- Power Supply: USB or external 5V, maximum 150mA
- I/O Pins: 7 pins for custom sensing/control
- Programming: Compatible with PICKIT3 debugger
- Dimensions: Kit size suitable for development applications
- Firmware: User modifiable in C, supports image and attribute management
- Backlight Options: RGB with configurable backlight control
- Voltage Range: 4.5V to 5.5V
Buy the Buy NKK Switches IS-ENG-KIT-5-DC Part Number ISENGKIT5DC Online
Enhance your development capabilities with the NKK Switches SmartSwitch Development Kit. Featuring dual 36 x 24 RGB LCD displays, programmable firmware, and a robust S0205 controller, this kit is ideal for testing, prototyping, and integrating advanced switch and display solutions. Powered via USB or external power, it supports serial communication at 115.2K baud and includes programmable features for innovative applications. Easily program with PICKIT3, utilize the source code provided, and customize your system for optimal performance. Perfect for engineers designing automation, control, or user-interface systems.
Buy NKK Switches IS-ENG-KIT-5-DC now and experience flexible SmartSwitch control for dual LCD displays in your engineering projects.
Frequently Asked Questions
Where can I buy NKK Switches ISENGKIT5DC?
You can click on the BUY or RFQ button to purchase ISENGKIT5DC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ISENGKIT5DC?
You can download the ISENGKIT5DC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ISENGKIT5DC?
NKK Switches
