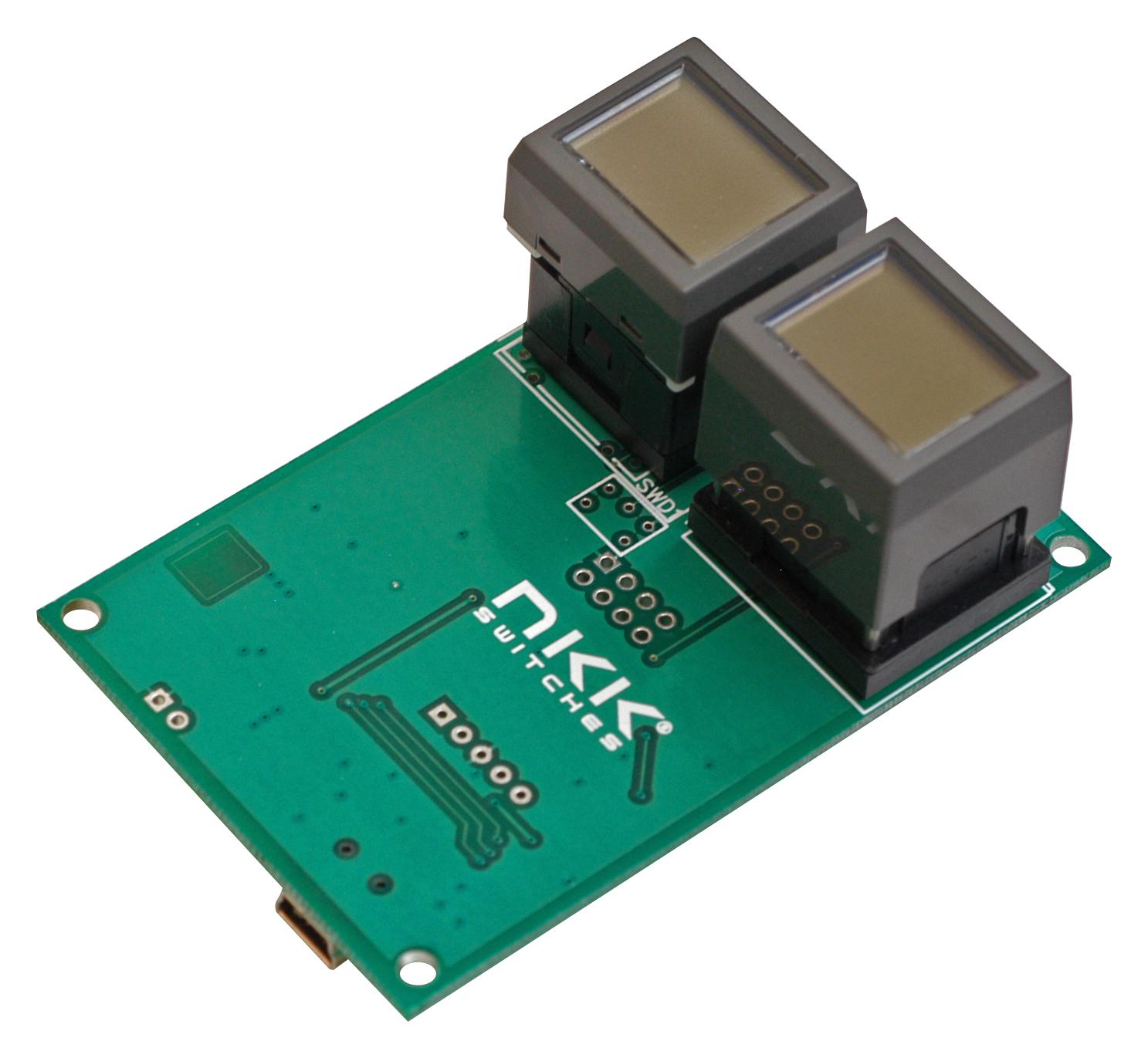

NKK Switches ISENGKIT6SH LCD SmartSwitch Kit
The IS-ENG-KIT-6-SH from NKK Switches is a comprehensive SmartSwitch development kit for LCD 64x32 displays, including a standard and hybrid display controlled via S02G1. It features serial communication via USB at 115.2K baud, onboard 1M NOR flash memory for images and attributes, an auxiliary port with seven I/O pins for custom control, and supports both standalone and real-time operation. The kit includes schematics, firmware, and source code in C, enabling easy customization. Power options include USB or an external 5V supply, making it ideal for testing, development, and integration of LCD SmartSwitches in various applications.
NKK Switches ISENGKIT6SH LCD SmartSwitch Kit Specifications:
- Display: 64x32 pixels, RGB backlight with 64 colors
- Controller: S02G1 microcontroller
- Memory: 1M NOR flash for images and attributes
- Communication: USB serial (115.2K baud, 8N1)
- Power Supply: 4.5V to 5.5V via USB or external 5V jack
- Current Consumption: Max 150mA at 5V
- Auxiliary I/O: 7 pins configurable for user applications
- Programming: Compatible with PICKIT3 using ISP adaptor
- Dimensions: Approx. 49.93 mm x 74.93 mm
- Firmware: Customizable with C source code
- Included: Schematics, firmware, source code, USB cable
Buy the NKK Switches Series SmartSwitch LCD Display: ISENGKIT6SH
Purchase the NKK Switches LCD SmartSwitch development kit today and unlock advanced control over LCD displays with easy USB connectivity, onboard memory, and customizable firmware. Ideal for testing, prototyping, and integrating LCD 64x32 displays into your projects, this kit offers flexible power options, programmable features, and comprehensive schematics and code. Quickly develop and customize applications with the included firmware, source code, and communication software, ensuring rapid deployment of innovative SmartSwitch solutions for industrial or consumer electronics.
Buy NKK Switches ISENGKIT6SH online now and experience unmatched reliability, flexible development tools, and easy integration of LCD SmartSwitch technology.
Frequently Asked Questions
Where can I buy NKK Switches ISENGKIT6SH?
You can click on the BUY or RFQ button to purchase ISENGKIT6SH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part ISENGKIT6SH?
You can download the ISENGKIT6SH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of ISENGKIT6SH?
NKK Switches
