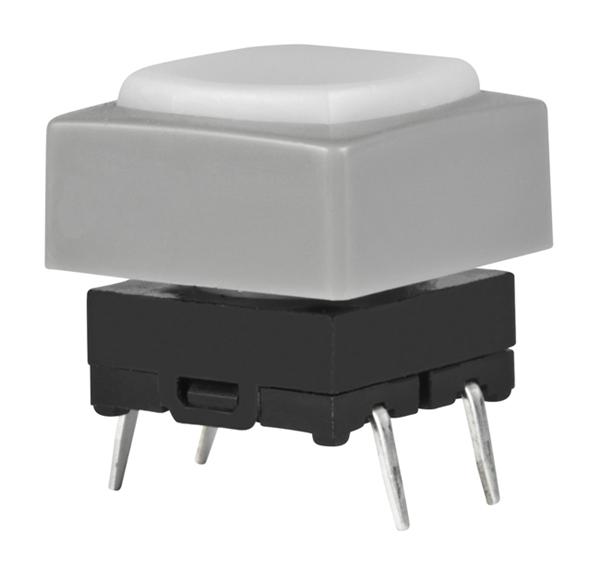

NKK Switches JB15KP4BH Tactile PCB Switch
This low-profile tactile switch is designed for PCB applications, featuring a slim profile for space-saving projects. It offers crisp tactile feedback with a long mechanical life of up to 5,000,000 operations, made from durable materials such as glass fiber reinforced PBT and polyamide. With high environmental resistance, including IP67 sealing, operating temperature from 25°C to 70°C, and compliance with UL standards, it ensures dependable performance in various electronic devices. Ideal for automation, control systems, and compact electronic applications requiring reliable, sealed tactile switching.
NKK Switches JB15KP4BH Tactile PCB Switch Specifications:
- Operating Force: 1.76N (Standard), 2.65N (High)
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC for 1 minute
- Mechanical Life: 5,000,000 operations
- Materials: Actuator: Glass fiber reinforced PBT; Case: UL94V-0 polyamide; Seal: Nitrile rubber; Base: Glass fiber reinforced PBT; Contacts: Phosphor bronze with tin plating
- Environmental: Operating temperature -25°C to +70°C, IP67 sealing, Humidity 90-95% for 240 hours @ 40°C
- Mounting: Through-hole with slanted terminals for secure mounting, compatible with wave soldering, manual cleaning, and automated cleaning
- Dimensions: Compact size with terminal spacing of .100” (2.54mm), panel thickness from .039” to .079”
- Standards: UL10V-0 rated case & base, sealed construction, suitable for low-voltage, low-current circuits
Buy the NKK JB15KP4BH – Reliable Tactile Switch for Industrial Applications
Purchase the NKK JB15KP4BH tactile switch online today to ensure reliable tactile feedback and sealed protection for your electronic devices. Its compact design, durable construction, and high cycle life make it ideal for automation, control panels, and space-constrained applications. Enjoy fast delivery and secure checkout options, giving your projects the dependable quality they deserve. Upgrade your electronics with this sealed, reliable switch designed for demanding industrial environments. Buy now and improve your device’s performance with NKK’s trusted switch technology.
Order your NKK Series JB15KP4BH tactile switch today and enhance your electronic projects with dependable, sealed contact performance for industrial use.
Frequently Asked Questions
Where can I buy NKK Switches JB15KP4BH?
You can click on the BUY or RFQ button to purchase JB15KP4BH from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part JB15KP4BH?
You can download the JB15KP4BH datasheet or visit the NKK Switches website for support.
Who is the manufacturer of JB15KP4BH?
NKK Switches
