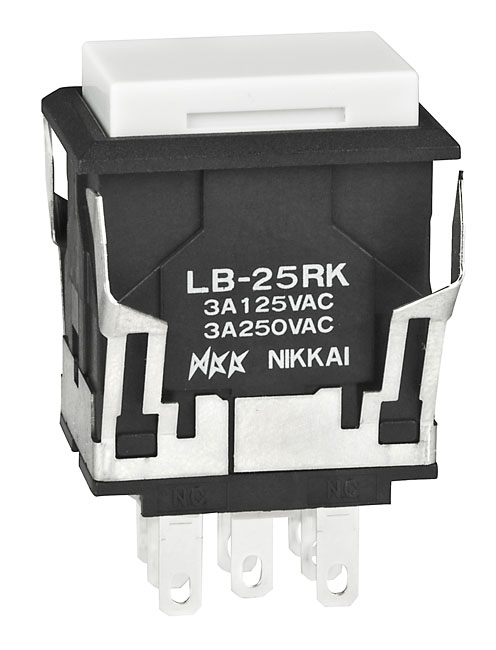

NKK Switches LB25RKW01B Standard Illumination Pushbutton
This standard size illuminated push button switch features snap-in mounting for easy panel installation and reliable electrical connection. Designed to provide clear visual indication, it is ideal for control systems requiring bright illumination. The switch supports multiple LED colors, including red, green, and blue, with options for resistors or built-in illumination. Constructed with durable polycarbonate and metal components, it withstands harsh environments. Its compact design minimizes behind-panel depth, making it suitable for a wide range of industrial and electronic control applications, ensuring long-lasting performance and visibility.
NKK Switches LB25RKW01B Standard Illumination Pushbutton Specifications:
- Housing Material: Polycarbonate
- Contact Material: Silver alloy or copper with gold plating
- Electrical Capacity (Resistive Load): 3A @ 125V AC & 250V AC
- Power Level (silver): 0.4VA max. @ 28V AC/DC max.
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts & case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary, 200,000 for maintained circuit
- Operating Temperature Range: -25°C to +50°C for illuminated, -25°C to +70°C for non-illuminated
- Travel: Pretravel and overtravel approx. 1.5mm, total travel approx. 3.0mm
- Mounting: Snap-in with stainless steel clips
- LED Options: Bright, super bright, with resistor or without resistor, various colors including red, green, blue
- Panel Seal: Available with IP65 rating for panel sealing
- Certifications: UL Recognized, CSA Certified (order markings required)
Buy the Buy NKK Switches Standard Illumination Pushbutton Part Number LB25RKW01B Online
Purchase your NKK Switches LB25RKW01B illuminated pushbutton online now. Featuring snap-in mounting, durable polycarbonate housing, and bright LED options, this switch is perfect for industrial control panels. Its high electrical capacity and long mechanical life provide reliable performance in demanding environments. Compact design minimizes behind-panel depth, making installation easier. Available with various LED colors and sealing options, it enhances visibility and safety. Order today for fast delivery and enjoy trusted quality for your automation and control projects.
Order your NKK Switches Series LB LB25RKW01B illuminated pushbutton today and ensure dependable panel control with bright, reliable illumination.
Frequently Asked Questions
Where can I buy NKK Switches LB25RKW01B?
You can click on the BUY or RFQ button to purchase LB25RKW01B from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25RKW01B?
You can download the LB25RKW01B datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25RKW01B?
NKK Switches
