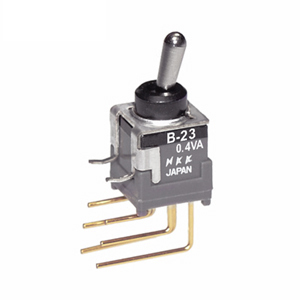

NKK Switches B23JV PCB Toggle Switch
The B23JV toggle switch is a compact, PCB-mountable component designed for space-efficient electronics and industrial controls. With a subminiature size, it features a sealed body construction that prevents contact contamination, making it suitable for low-voltage, low-current logic circuits. The switch offers multiple pole and circuit configurations, including single and double pole options, with standard and locking lever variants. Made from high-quality materials such as nickel-plated brass and polyamide, it ensures durability and reliable operation in various environmental conditions, including temperature ranges from -30°C to +85°C and high humidity. It supports wave soldering, manual soldering, and automated cleaning, meeting safety standards like UL9AV-0, although not certified by UL or CSA. Its design emphasizes static discharge prevention and ease of installation, making it ideal for compact electronic assemblies requiring high reliability and precise switching functions.
NKK Switches B23JV PCB Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for On-None-On and 50,000 for others
- Nominal Operating Force: 1.47N to 2.72N depending on toggle type
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Materials & Finishes: Nickel-plated brass, polyamide, carbon-impregnated bushing, nitrile rubber
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock: 50G acceleration
- Soldering: Wave soldering and manual soldering compatible
- Standards & Certifications: UL9AV-0, not UL or CSA certified
- Mounting Torque: 30-45 in-lb for threaded bushing
Buy the NKK B23JV – Reliable PCB Toggle Switch for Industrial Applications
Get your NKK B23JV PCB toggle switch online today and enhance your electronic assembly with a compact, sealed, and high-reliability switch. Designed for PCB mounting, it offers multiple circuit options, durability in harsh conditions, and easy soldering. This switch is ideal for low-voltage control circuits in industrial equipment, consumer electronics, and automation systems. With its sealed construction and static discharge prevention, it ensures stable operation and long service life. Purchase now for fast delivery and trusted quality to keep your projects on track and meet your technical requirements with confidence.
Order your NKK Series B23JV PCB toggle switch today and equip your electronic projects with a durable, space-saving, and reliable control component.
