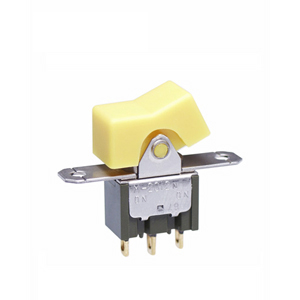

NKK Switches M2012TNG01 Miniature Rocker Switch
This miniature rocker switch offers reliable multi-function control in compact electronic devices. It features high dielectric strength, dual ratings for power and logic circuits, and robust construction with epoxy sealed terminals. Suitable for panel mounting via flat frame, snap-in, or PCB, it ensures high insulation resistance and durability with minimum mechanical and electrical life ratings of 50,000 operations. Conforming to UL94V-0 flammability standards, this switch is ideal for various electronic applications demanding precision and safety in a small form factor.
NKK Switches M2012TNG01 Miniature Rocker Switch Specifications:
- Electrical Capacity (Resistive Load): 6A @ 125V AC, 3A @ 250V AC, 0.4VA max @ 28V DC
- Contact Resistance: 10 milliohms max for silver, 20 milliohms max for gold
- Insulation Resistance: 1,000 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC contact-to-contact, 1,500V AC contact-to-case
- Mechanical Life: 50,000 operations minimum
- Electrical Life: 25,000 operations for silver, 50,000 for gold
- Temperature Range: -30°C to +85°C
- Operating Temp Range: -30°C to +85°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm for 2 hours
- Shock: 50G acceleration test
- Material: Diallyl phthalate resin UL94V-0 case, phosphor bronze contacts
- Mounting: Flat face panel, snap-in, or PCB mounting
- Certifications: UL Recognized, CSA Certified, Flammability UL94V-0
Buy the NKK Series M Miniature Rocker Switch: M2012TNG01
Purchase the NKK Series M Miniature Rocker Switch M2012TNG01 online today and enjoy reliable switching performance with dual ratings for power and logic circuits. Its epoxy sealed terminals and UL94V-0 flame-rated case ensure safety and durability in compact electronic devices. Designed for panel mounting via flat frame, snap-in, or PCB, this switch’s high dielectric strength and long mechanical and electrical life make it ideal for demanding applications. Get prompt delivery and superior control solutions now!
Buy NKK Series M Miniature Rocker Switch M2012TNG01 now and experience unmatched reliability and performance for your electronic control needs.
