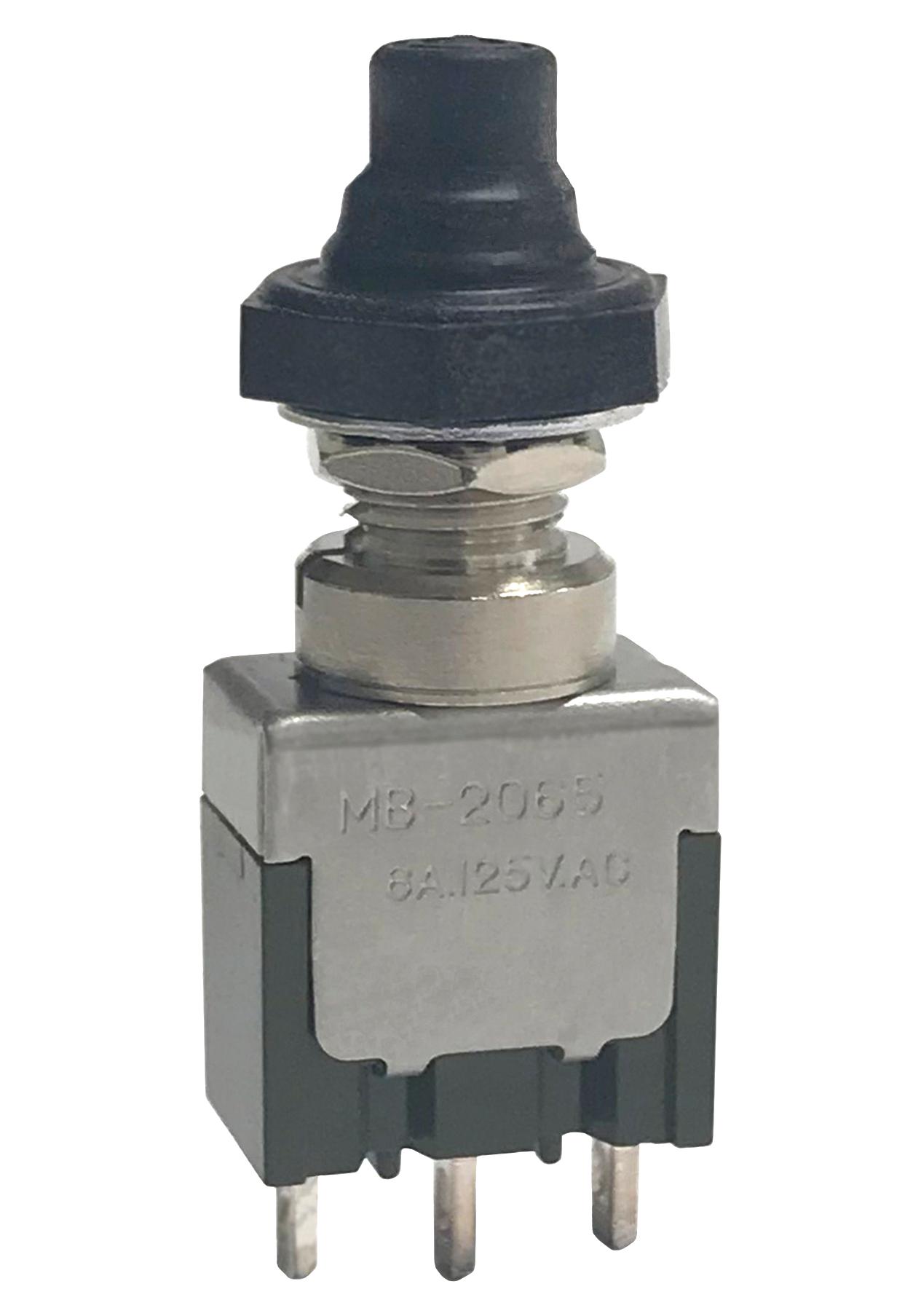

NKK Switches MB2065VA001 Miniature Pushbutton
The Miniature Pushbutton with Splashproof Boot Series MB2000 offers reliable switching for industrial and control applications. Featuring a splashproof silicone rubber boot, this switch provides IP65 sealing, ensuring protection against dust and water ingress. It supports resistive loads up to 6A at 125V AC and 3A at 250V AC, with an operational life of 100,000 cycles. The switch frame is constructed from nickel-plated brass, and it offers a pretravel of 2.80mm, overtravel of 1.09mm, and total travel of 3.90mm. Easy installation, durable materials, and compliance with RoHS and UL standards make it ideal for automation, machinery, and control systems.
NKK Switches MB2065VA001 Miniature Pushbutton Specifications:
- Electrical Capacity: 6A at 125V AC, 3A at 250V AC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts & case (1 min)
- Mechanical Life: 100,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Contact Material: Silver alloy with silver plating
- Plunger Travel: Pretravel 2.80mm, Overtravel 1.09mm, Total Travel 3.90mm
- Operating Temperature Range: -30°C to +85°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration & Shock: Meets IEC standards, resistant to 50G shocks
- Mounting Torque: 0.7Nm
- Soldering: Manual soldering at 390°C for 4 seconds maximum
- RoHS Compliant, UL Recognized
Buy the NKK Series MB2000 Miniature Pushbutton: MB2065VA001
Order the Miniature Pushbutton from the Series MB2000 with splashproof silicone rubber boot now. Designed for durability, IP65 sealing rating, and high current capacity, this switch is perfect for automation and control systems. Easy to install, with a long operational life of 100,000 cycles, it ensures reliable performance in demanding industrial environments. Featuring stainless steel and nickel-plated brass construction, it withstands shocks, vibration, and harsh conditions, making it an ideal choice for engineers and technicians seeking quality and dependability in switch components.
Buy NKK Series MB2000 MB2065VA001 switch now and experience unmatched reliability and performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches MB2065VA001?
You can click on the BUY or RFQ button to purchase MB2065VA001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part MB2065VA001?
You can download the MB2065VA001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of MB2065VA001?
NKK Switches
