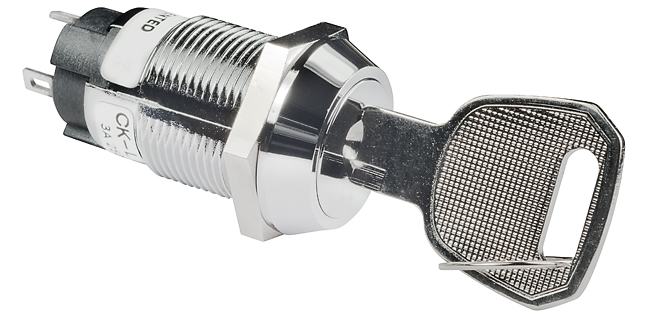

NKK Switches CKL12BFW01018 High Security Lock
High-security key lock with solder lug connection designed for secure locking applications and easy installation. Features include resistive load capacity of 3A at 250V AC, high dielectric strength of 1,500V between contacts and case, and reilable sliding contacts for long operating life. Made of brass with nickel or chrome plating, utilizing epoxy sealed terminals for contamination resistance. Suitable for industrial safety, automation, or control systems requiring robust, high-security locking mechanisms with transient voltage withstand capabilities up to 15 kilovolts.
NKK Switches CKL12BFW01018 High Security Lock Specifications:
- Electrical Capacity: 3A @ 250V AC
- Contact Resistance: 20 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,500V AC for 1 minute
- Contact Material: Silver over Silver
- Housing Material: Brass with nickel or chrome plating
- Terminal Type: Solder Lug Terminals
- Operating Temperature Range: -25°C to +70°C
- Humidity: 90-95% for 96-240 hours at 40°C
- Vibration Resistance: 10-55Hz, peak-to-peak amplitude 1.5mm
- Shock Resistance: 50G (CKM), 30G (CKL)
- Mounting Bushing Diameter: 19mm
- Torque: 0.05-0.07 mNm depending on key type
- Mechanical Life: 30,000 cycles minimum
- Electrical Life: 10,000 cycles minimum
Buy the NKK CKL12BFW01018 – Reliable High Security Lock for Industrial Applications
Order the high-security lock online today to ensure your industrial equipment is securely protected. Featuring solder lug terminals, epoxy sealed contacts, and durable die-cast housing, this lock offers reliable performance under demanding conditions. With a resistive load capacity of 3A at 250V AC, high dielectric strength of 1,500V, and robust construction, it is ideal for control systems requiring tough, reliable locking solutions. Purchase now to benefit from fast delivery and excellent customer support.
Buy NKK CKL12BFW01018 high-security lock now and experience unmatched reliability and long-lasting performance for your industrial locking needs.
Frequently Asked Questions
Where can I buy NKK Switches CKL12BFW01018?
You can click on the BUY or RFQ button to purchase CKL12BFW01018 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part CKL12BFW01018?
You can download the CKL12BFW01018 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of CKL12BFW01018?
NKK Switches
