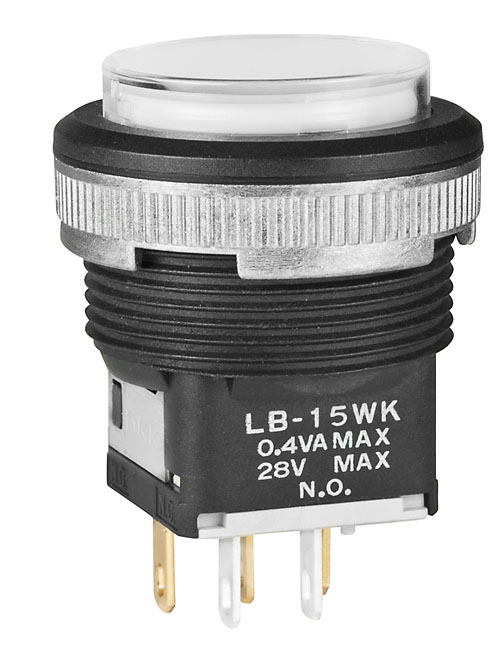

NKK Switches LB15WKG015C12JC Waterproof Pushbutton Switch
The standard size illuminated waterproof pushbutton switch is engineered for durability and reliable operation in demanding industrial and outdoor environments. It features a sealed IP65 design compliant with IEC60529, providing water resistance for outdoor and harsh settings. The switch offers front panel relamping with a bright diffusion filtering system, and various LED color options including red, amber, green, blue, and white. Its snap-action contact mechanism ensures a long electrical life, tactile feedback, and a compact design minimizes behind-panel depth. Suitable for applications requiring water-proofing and robust performance.
NKK Switches LB15WKG015C12JC Waterproof Pushbutton Switch Specifications:
- Electrical Capacity: 3A @ 125V AC or 250V AC; 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms max for silver, 100 milliohms max for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 min, 1,500V AC between contacts and case for 1 min
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations min for maintained circuit
- Operating Temperature Range: -25°C to +50°C for illuminated models, 25°C to +70°C for non-illuminated models
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz, amplitude 1.5mm, 2 hours in each direction
- Shock: 50G acceleration in 6 directions
- Sealing: IP65 IEC60529 standard (NEMA 4 & 13 compatible)
- Mounting Torque: 1.96Nm
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Operating Temperature for illuminated: -25°C to +50°C
- Housing Color: Black
- Terminals: Solder lug and quick connect, epoxy sealed
- Lamp Options: Incandescent, neon, LED with resistors; various voltage ratings
- Certifications: UL recognized, CSA certified, IEC standard IP65
- Recommended Panel Thickness: 1.0mm to 4.0mm with splash cover 1.0mm to 3.5mm
Buy the NKK LB15WKG015C12JC – Reliable Waterproof Pushbutton for Industrial Applications
Purchase the NKK waterproof pushbutton switch online today to ensure your industrial or outdoor equipment benefits from reliable water resistance and durable operation. Designed for demanding environments, this compact switch features IP65 sealing, a bright diffusion system for full surface illumination, and a choice of LED colors. Its snap-action mechanism guarantees long electrical life and responsive actuation. Ideal for applications requiring waterproofing, easy mounting, and robust performance, order now and enhance your project with trusted industrial-grade components that deliver safety, performance, and longevity.
Get NKK LB15WKG015C12JC today—built for precision, long-lasting durability, and reliable water-resistant performance in demanding environments.
Frequently Asked Questions
Where can I buy NKK Switches LB15WKG015C12JC?
You can click on the BUY or RFQ button to purchase LB15WKG015C12JC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15WKG015C12JC?
You can download the LB15WKG015C12JC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15WKG015C12JC?
NKK Switches
