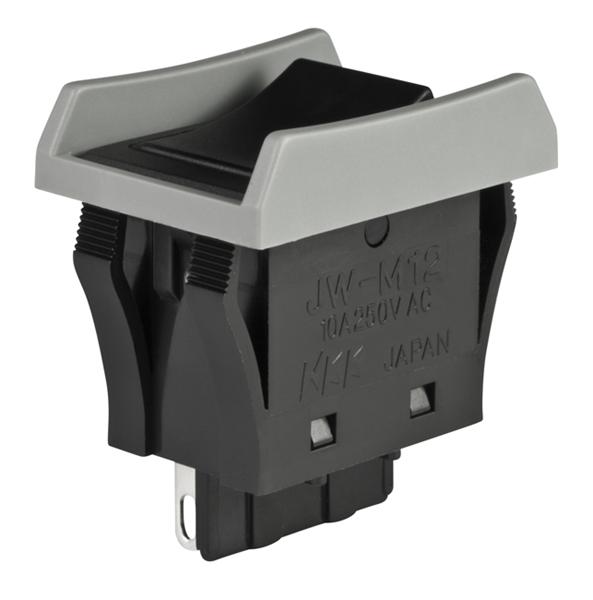

NKK Switches JWM12BAAH Power Rocker Switch
A power rocker switch designed for snap-in mounting, suitable for controlling electrical circuits in various electronic applications.
NKK Switches JWM12BAAH Power Rocker Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JWM & JWMW models; 10A @ 30V DC for JWMW; 16A @ 125/250V AC for JWL & JWLW models; 5A @ 72V DC for telecommunication
- Contact Resistance: 10 milliohms maximum for JWM & JWMW; 20 milliohms maximum for JWL & JWLW
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum between contacts for 1 minute; 4,000V AC minimum between contacts & case for 1 minute
- Mechanical Life: 25,000 operations minimum
- Electrical Life: 25,000 operations minimum
- Nominal Operating Force: JWM & JWMW Single Pole 3.92N & Double Pole 7.84N; JWL Single Pole 5.00N & Double Pole 10.00N
- Angle of Throw: 26°
- Housing / Frame: Polyphenylene ether (UL94V-0)
- Terminals: Brass with silver plating, epoxy sealed
- Operating Temperature Range: -25°C through +70°C for JWM & JWL; -25°C through +85°C for JWMW & JWLW
- Sealing: IP67 (JWMW & JWLW), dust resistant for others
- Panel Thickness Range: 0.039” ~ 0.157” (1.0mm ~ 4.0mm) with or without barrier
- Housing Colors: Black, Ivory, Gray
- Barrier Types & Colors: With Barrier (Black, Ivory, Gray), No Barrier (flat flange, black)
Buy the NKK Series JW U+2013 Reliable Rocker Switches for Industrial Applications
Enhance your control system with this reliable power rocker switch featuring snap-in mounting, high electrical capacity, and IP67 sealing for rugged industrial and electronic applications. Suitable for various voltages and currents, it offers long mechanical and electrical life, with dust resistance and excellent insulation properties. Easy to install and maintain, this switch ensures dependable switching performance in demanding environments, making it a perfect choice for industrial automation, control panels, and electronic projects.
Order your NKK Series JW 10 & 16 Amp Rocker Switch today and give your projects the dependable quality they deserve with high electrical capacity and IP67 sealing.
