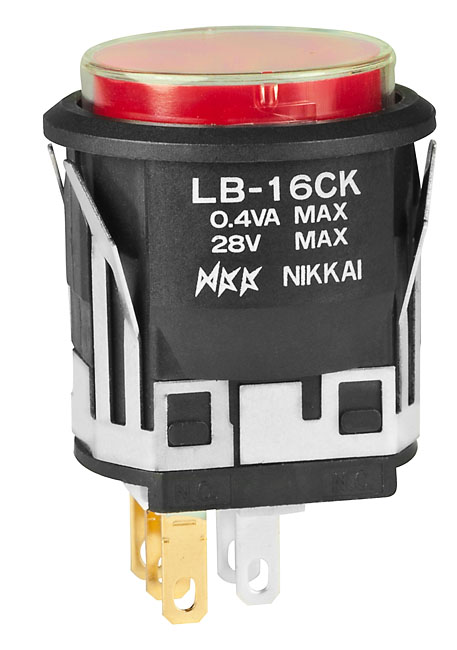

NKK Switches LB16CKW015C05JC Illuminated Pushbutton
The LB series illuminated pushbutton switch features snap-in mounting for easy installation, durability, and bright surface illumination with various LED options. It offers enhanced reliability with long electrical life, a responsive snap-action mechanism, and options for panel sealing, waterproofing, and custom legends. Suitable for control panels, industrial equipment, and automation systems, it includes diverse LED colors, voltages, and cap styles to meet specific operational needs, ensuring high performance, environmental resistance, and compliance with safety standards for robust industrial applications.
NKK Switches LB16CKW015C05JC Illuminated Pushbutton Specifications:
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 operations minimum for maintained circuit
- Electrical Ratings: 3A @ 125V or 250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver; 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute; 1,500V AC between contacts and case for 1 minute
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Material: Housing: Glass fiber reinforced polyamide; Snap-in Frame: Stainless steel; Contacts: Silver alloy or gold-plated copper; Switch Terminals: Brass with silver plating
- Dimensions: Cutout 16.2mm x 16.2mm (square), Panel thickness 1.0 - 4.0mm
- Mounting: Snap-in clip for secure mounting, compatible with various panel thicknesses
- Environmental Resistance: IP65 panel seal, withstands 95% humidity for 96 hours at 40°C
- Standards & Certifications: UL Recognized, CSA Certified, File No. E44145; optional UL/CUL recognition available
Buy the NKK Series LB Illuminated Pushbutton: LB16CKW015C05JC
Order the NKK LB series illuminated pushbutton switch online today and experience reliable operation with bright LED options, snap-in installation, and robust environmental sealing. Perfect for industrial control panels, automation systems, and machinery, this switch ensures long electrical life and high performance with a variety of cap styles, LED colors, and certifications. Easy to install, with environmental resistance up to IP65, it is designed for demanding industrial environments. Buy now for fast delivery and consistent quality that meets industry standards.
Get NKK LB16CKW015C05JC today—built for precision, long-lasting durability, and easy panel integration in control systems.
Frequently Asked Questions
Where can I buy NKK Switches LB16CKW015C05JC?
You can click on the BUY or RFQ button to purchase LB16CKW015C05JC from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB16CKW015C05JC?
You can download the LB16CKW015C05JC datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB16CKW015C05JC?
NKK Switches
