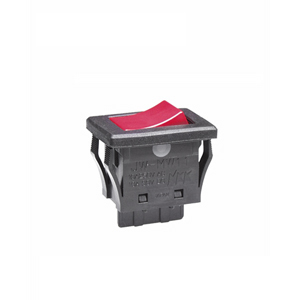

NKK Switches JWMW11RCA Power Rocker Switch
A power rocker switch with snap-in mounting, suitable for electronic applications requiring high inrush current handling. Designed with industry-leading TV ratings, this switch features robust insulation, dust resistance, and an IP67 panel seal version. Made from UL94V-0 rated polyamide and polyphenylene sulfide, it guarantees exceptional durability and safety. It operates within -25°C to +85°C, ensuring reliable performance across diverse environments. With high electrical capacity of 10A and 16A, the switch is ideal for controlling large loads in industrial and electronics systems, supporting efficient operation and safety standards compliance.
NKK Switches JWMW11RCA Power Rocker Switch Specifications:
- Electrical Capacity: 10A @ 125/250V AC for JWM models; 16A @ 125/250V AC for JWL models; 10A @ 30V DC for JWMW
- Material: Polyphenylene ether (UL94V-0) case/frame, melamine barrier (UL94V-0), polyamide housing (UL94V-0), silver alloy contacts with plating
- Operating Temperature Range: -25°C to +85°C
- Environmental Resistance: 90-95% humidity @ 40°C for 96 hours, vibration: 1.5mm peak-to-peak at 10-55Hz, shock: 50G
- Dielectric Strength: 2,000V AC minimum between contacts, 4,000V AC between contacts and case
- Electrical Life: 25,000 operations, Mechanical Life: 25,000 operations
- Contact Resistance: <10 milliohms for JWM & JWMW, <20 milliohms for JWL & JWLW
- Certifications: UL, CSA, VDE standards, recognized at 10A 250V AC for some models
- Housing & Terminal: Heat-resistant resin, solder lug/quick connect terminals, galvanized brass with silver plating
- Panel Seal Versions: IP67 compliant for JWMW & JWLW, dust-resistant with inner seal
Buy the NKK Series JW – Reliable High Inrush Power Switch for Industrial Applications
Enhance your electrical systems with the reliable NKK Series JW power rocker switch, supporting high inrush currents of 10A and 16A. Its robust construction features UL94V-0 rated plastics, IP67 panel seal, and Certified safety standards, making it suitable for industrial and electronic load control applications. Easy to install with snap-in mounting, its dust-resistant design and high electrical capacity allow for durable operation in challenging environments. Purchase online now and benefit from dependable performance and compliance with international safety standards.
Order your NKK Series JW power rocker switch with high inrush current capacity today and ensure reliable control in demanding electrical environments.
