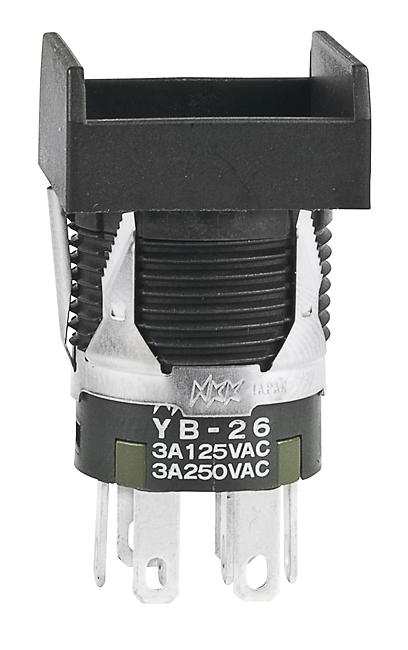

NKK Switches YB26KKW01 Short Body Pushbutton
This short-bodied, illuminated pushbutton is designed for panel mounting, featuring durable construction suitable for control panels and machinery interfaces, offering clear visual indication when activated. It supports various illumination options with LEDs or incandescent lamps, includes multiple terminal and mounting configurations, and meets IEC60529 IP65 standards for dust and splash resistance, ensuring reliable operation in harsh environments. Its compact design enhances safety and operational efficiency in industrial control applications, combining robustness with ease of installation and maintenance.
NKK Switches YB26KKW01 Short Body Pushbutton Specifications:
- Power Level (silver): 3A @ 125/250V AC
- Logic Level (gold): 0.4VA max. @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute, 1,500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum for momentary circuit, 200,000 for maintained circuit
- Nominal Operating Force: 1.47N for nonsealed, 1.67N for sealed (single pole)
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Housing/Bezel Material: Glass fiber reinforced polyamide (UL94V-0)
- Base Material: Polyamide
- Environmental Range: -25°C through +50°C for illuminated, -25°C through +70°C for non-illuminated, 90-95% humidity for 96 hours @ 40°C
- Ingress Protection: IP65 for panel seal models, compliant with IEC60529 standards
- Mounting Torque: 0.785Nm (6.95 Ibs-in)
- Operating Temperature Range: -25°C to +70°C
- Certification: Recognized under UL File No. E44145, CSA certified, recognized in North America
- Dimensions and Mounting: Round and rectangular shapes with bushing or snap-in mounting, panel thickness ranges from 0.020" to 0.150" for bushing mount, 0.020" to 0.091" for snap-in
- Terminals: Solder lug and quick connect options, 0.110" (2.8mm) spacing
- Lighting Options: LED or incandescent lamp with various colors; includes resistors for LEDs, supports illumination indication
Buy the Buy Industry Control Components Short Body Pushbuttons Series YB Part Number YB26KKW01 Online
Purchase the advanced short body illuminated pushbutton from our online store today. Designed for durability and precise control, it features IP65 dust and splashproof protection, multiple mounting options, and reliable electrical ratings suited for industrial machinery. Its compact size allows easy installation in control panels with minimal space. The switch offers a variety of illumination options including LEDs and incandescent lamps, providing clear visual feedback. Enhance your automation system with this durable, high-performance pushbutton, available now for quick and secure online ordering.
Buy Industry Control Components Short Body Pushbuttons Series YB YB26KKW01 now and experience unmatched reliability and performance in industrial automation.
Frequently Asked Questions
Where can I buy NKK Switches YB26KKW01?
You can click on the BUY or RFQ button to purchase YB26KKW01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part YB26KKW01?
You can download the YB26KKW01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of YB26KKW01?
NKK Switches
