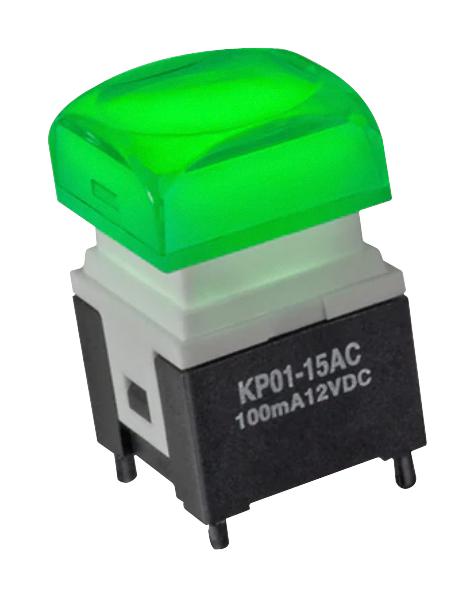

NKK Switches KP0115ACBKG03RGBP3SJB RGB Pushbutton Switch
The KP series miniature RGB pushbutton switch is a versatile component ideal for audio/video broadcast panels. It features a 4.5mm stroke with a 1.9N actuation force, delivering tactile feedback and silent operation. Equipped with a super bright RGB LED, it offers vibrant, unlimited color combinations for status indication. The switch includes a unique actuation guide for precise circuit transfer indication and comes with a sculptured cap and 17.4mm square size for flexible design. Rated at 100mA/12VDC with high reliability gold contacts, it ensures long-term durability and easy soldering, making it perfect for professional applications.
NKK Switches KP0115ACBKG03RGBP3SJB RGB Pushbutton Switch Specifications:
- Switch Type: Tactile, Nontactile, or Tactile/Audible
- Actuation Force: 1.9N maximum
- Travel: 4.5mm (0.177")
- Plunger Size: 11.6mm
- Cap Sizes: 12.0mm, 15.0mm, or 17.4mm square caps
- LED Colors: Red, Green, Blue (RGB)
- LED Forward Voltage: 2.0-2.9V
- LED Forward Current: 10-16mA
- Rated Current: 100mA @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1000V AC for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Material: Polycarbonate lens and diffuser, gold-plated contacts
- Operating Temperature Range: -25°C through +50°C
- Soldering: Wave and manual soldering compatible
- Standards & Certifications: UL94V-0 flammability
Buy the NKK Switches KP – Reliable RGB Switch for Industrial Applications
Experience the unmatched performance of the NKK Switches RGB Pushbutton Switch. With a compact design, bright RGB LED, and long lifespan of 5 million operations, it ensures reliable operation in audio/video broadcast panels and automation systems. Its easy-to-solder profile and multiple cap options enhance design flexibility. Perfect for control panels requiring vibrant color indication and tactile feedback, this switch combines durability and aesthetic appeal, making it the ideal choice for professional electronic control solutions.
Buy NKK Switches KP switch now and enjoy durable, silent, and vibrant RGB control suitable for professional broadcast and control systems.
Frequently Asked Questions
Where can I buy NKK Switches KP0115ACBKG03RGBP3SJB?
You can click on the BUY or RFQ button to purchase KP0115ACBKG03RGBP3SJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0115ACBKG03RGBP3SJB?
You can download the KP0115ACBKG03RGBP3SJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0115ACBKG03RGBP3SJB?
NKK Switches
