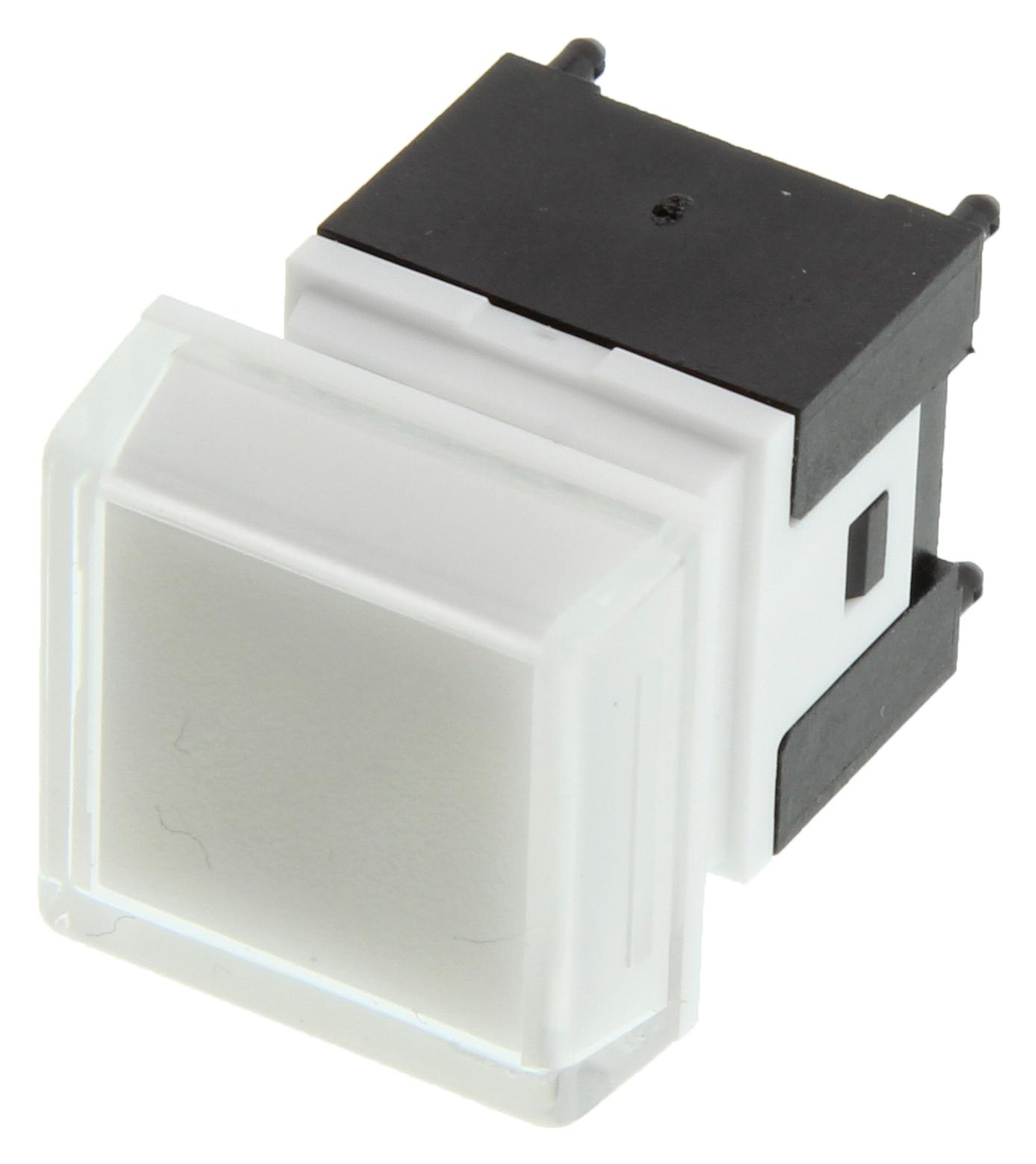

NKK Switches KP0215ANBKG036E3FJB Illuminated Pushbutton Switch
The KP Series illuminated pushbutton features a compact, low-profile design with a 3.5mm stroke and a height of 23.0mm. It offers high reliability with gold-plated contacts rated at 100mA @ 12V DC and a lifespan of 5 million operations. Available in super bright white, yellow, or blue LEDs, it’s suitable for control panels requiring tactile, silent actuation with quick response times. Constructed with UL94V-0 flame-resistant materials, the switch supports multiple cap sizes, lens options, and custom legends, ensuring versatility and durability in low-voltage logic circuits.
NKK Switches KP0215ANBKG036E3FJB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 100mA maximum at 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC minimum between contacts & case
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak amplitude 1.5mm, 1 minute
- Shock: 51G acceleration in 6 directions, 5 shocks each
- Pretravel: 0.091 inches (2.3mm); Overtravel: 0.047 inches (1.2mm); Total Travel: 0.138 inches (3.5mm)
- Plunger/Upper Housing Material: Glass fiber reinforced PBT (UL94V-0)
- Movable Contact: Gold over copper alloy
- Switch Terminals: Brass with fin plating
- Environmental Data: Operating temperature -25°C to +50°C, Humidity 90-95%, tested for vibration and shock
- Installation: Cap installation force 1.6N, wave and manual soldering with specified temperature cycles
- Standards & Certifications: Flammability UL 94V-0, no UL recognition or CSA certification
Buy the Buy NKK Switches KP Series Single Color Illuminated Pushbutton Part Number KP0215ANBKG036E3FJB Online
Purchase the NKK Series KP illuminated pushbutton online for dependable performance in control panels. Featuring super bright LEDs, gold-plated contacts rated at 100mA @ 12V, and a lifespan of 5 million operations, this compact switch offers silent actuation and versatile cap options. Its UL94V-0 flame-resistant housing provides durability in industrial environments. Easy to install and customize with legends, this pushbutton is ideal for low-voltage, logic-level circuits requiring quick response, long life, and high reliability in modern control system applications.
Order your NKK Series KP single color illuminated pushbutton with super bright LEDs today and enhance your control panel with reliable, durable switching solutions.
