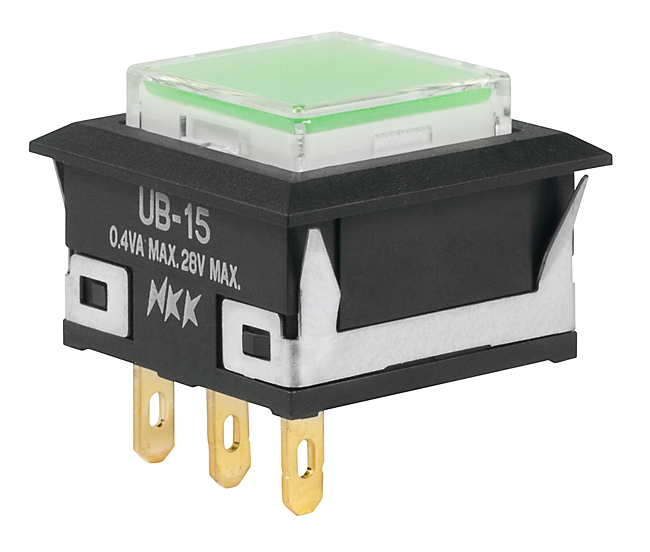

NKK Switches UB15KKG01NJF Illuminated Pushbutton Switch
A low-profile, illuminated pushbutton switch designed for PC and solder mounting. Suitable for various electronic applications requiring a compact, illuminated control button.
NKK Switches UB15KKG01NJF Illuminated Pushbutton Switch Specifications:
- Poles: Single Pole
- Circuit: SPDT, ON-(ON)
- Switch Rating: 5A @ 125V AC, 250V AC; 0.4VA max @ 28V AC/DC
- Contact Resistance: 50 milliohms for silver, 100 milliohms for gold
- Insulation Resistance: 200 megohms min @ 500V DC
- Dielectric Strength: 1000V AC contact-to-contact, 1500V AC contact-to-case
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations (resistive load 3A @ 125V AC)
- Operating Temperature: -20°C to +70°C
- Housing Material: UL94V-0 rated polymer, Bezel & Base
- LED: Bright or super bright, various colors, requiring external power source
- Mounting: PCB, Snap-in mounting with panel thickness 039” ~ 126” (1.0mm ~ 3.2mm)
Buy the NKK Series UB – Reliable Momentary Switch for Industrial Applications
Enhance your electronic control panels with the compact and durable illuminated pushbutton switch from NKK. Designed for PCB and solder mounting, it offers reliable operation with bright LED illumination in various colors. Ideal for tight spaces, this switch supports long mechanical and electrical life, making it suitable for industrial and commercial applications. Easy to install, it features high dielectric strength and resistance to environmental factors. Buy online now for trusted quality and seamless integration into your projects.
Order your NKK Series UB15KKG01NJF illuminated pushbutton today and give your electronic projects the dependable control they deserve.
Frequently Asked Questions
Where can I buy NKK Switches UB15KKG01NJF?
You can click on the BUY or RFQ button to purchase UB15KKG01NJF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part UB15KKG01NJF?
You can download the UB15KKG01NJF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of UB15KKG01NJF?
NKK Switches
