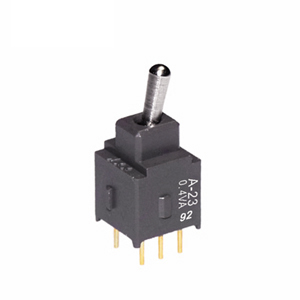

NKK Switches A23JP Process Sealed Subminiature Toggle Switch
Subminiature toggle switch designed for space-saving panel or PCB mounting, ideal for precise control in low-voltage, low-current logic-level circuits. Features sealed body construction to prevent contact contamination, with an award-winning STC contact mechanism for enhanced reliability and stability. Made from durable materials with nickel-plated brass, antistatic options, and compatible with automated soldering and cleaning processes. Suitable for applications requiring high contact resistance stability and environmental robustness, this switch provides smooth actuation, multiple circuit configurations, and conforms to industry standards for quality and performance.
NKK Switches A23JP Process Sealed Subminiature Toggle Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC, applicable range 0.1mA to 0.1A @ 20mV to 28V
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum between contacts and case for 1 minute
- Mechanical Life: 100,000 operations minimum for certain circuits
- Electrical Life: 50,000 operations minimum
- Operating Force: 1.47N (momentary), 1.18N (maintained) for 0.394" toggle; 2.73N (momentary), 1.84N (maintained) for other toggles
- Contact Timing: Nonshorting, break-before-make
- Angle of Throw: 26°
- Materials: Glass fiber reinforced polyamide for antistatic toggle, nickel plated brass, phosphor bronze with gold plating, brass with gold plating
- Temperature Range: -30°C to +85°C
- Environmental Resistance: 90-95% humidity for 240 hours, vibration at 1.5mm peak-to-peak, shock 50G
- Soldering: Wave soldering (Profile A recommended), manual soldering (Profile B), automated cleaning
- Standards & Certifications: Not UL or CSA certified, designed for low-voltage logic circuits
Buy the NKK Series A Process Sealed Subminiature Toggle Switch: A23JP
Order the NKK Process Sealed Subminiature Toggle Switch A23JP online today to ensure high-quality, durable control in your low-voltage, space-constrained applications. Engineered for precise operation, this switch offers sealed construction to prevent contamination, enhanced contact stability with award-winning mechanisms, and compatibility with automated soldering and cleaning processes. Perfect for PCB or panel mounting, it guarantees reliability, environmental resistance, and multiple circuit options. Elevate your control systems by purchasing this dependable switch online, offering fast delivery and professional support for your projects.
Buy NKK A23JP now and experience unmatched reliability and performance in space-saving toggle switching solutions.
Frequently Asked Questions
Where can I buy NKK Switches A23JP?
You can click on the BUY or RFQ button to purchase A23JP from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A23JP?
You can download the A23JP datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A23JP?
NKK Switches
