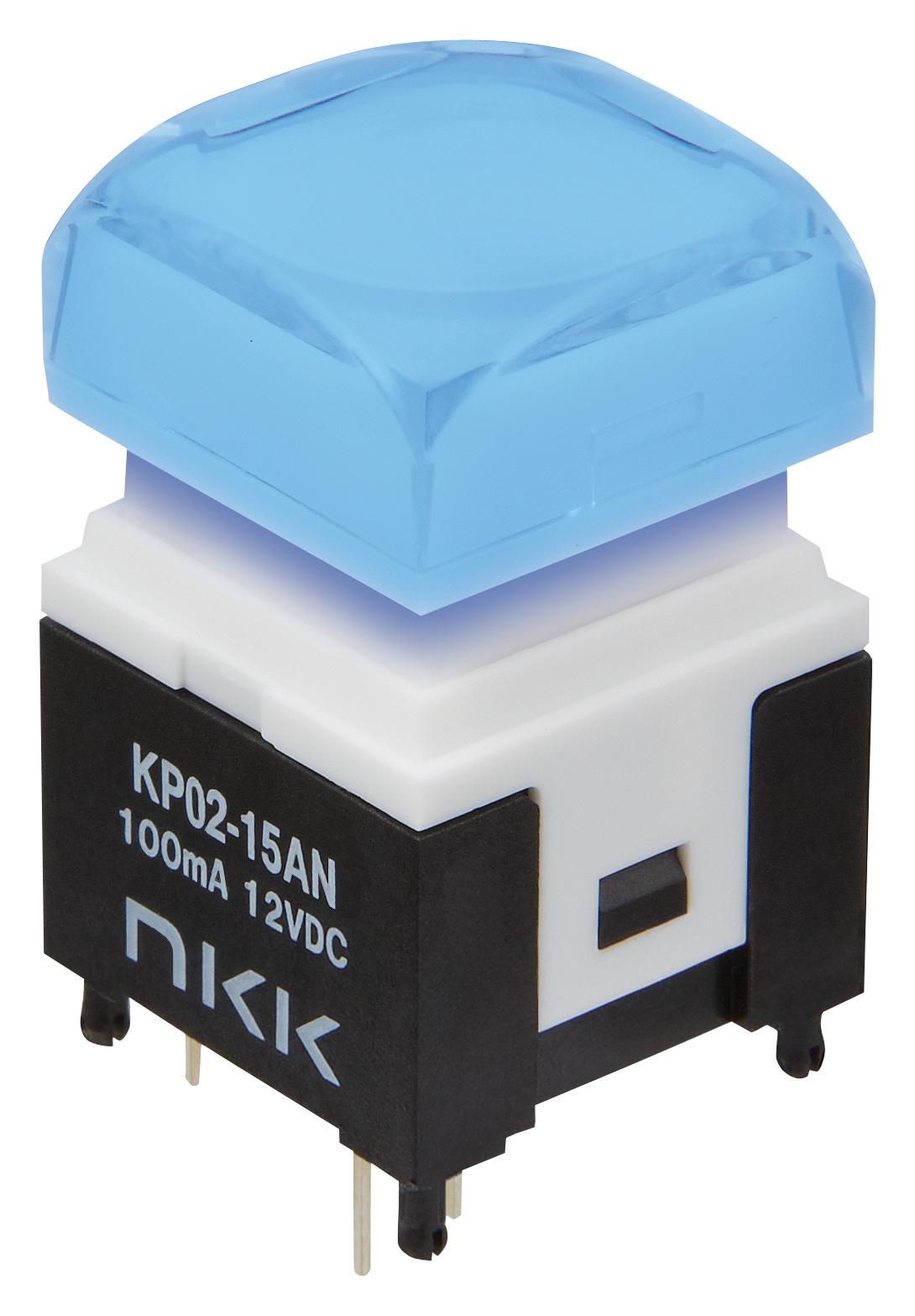

NKK Switches KP0215ANBKG036G3SJB Illuminated Pushbutton Switch
The KP Series illuminated pushbutton features a compact, square design with super bright white LED illumination, ideal for control panels in industrial and electronic applications. It offers a short stroke of 3.5mm, silent actuation, and high reliability with a minimum lifespan of 5 million operations. Made from UL94V-0 rated glass fiber reinforced PBT and polyacetal in environmental conditions from -25°C to +50°C, it includes gold-plated contacts rated at 100mA @ 12V DC. It supports flat, sculptured, and home key caps, with various sizes and legends for customization.
NKK Switches KP0215ANBKG036G3SJB Illuminated Pushbutton Switch Specifications:
- Electrical Capacity: 100mA maximum @ 12V DC
- Contact Resistance: 200 milliohms maximum
- Insulation Resistance: 100 megohms minimum @ 250V DC
- Dielectric Strength: 1,000V AC minimum between contacts for 1 minute
- Switch Life: Mechanical 5,000,000 operations; Electrical 5,000,000 operations
- Operating Temperature Range: -25°C to +50°C
- Humidity: 90-95% for 240 hours @ 40°C
- Vibration: 10-55Hz, peak-to-peak 1.5mm in three directions for 2 hours each
- Shock: 51G acceleration in six directions with shocks in each
- Actuation Force: 1.6N
- Travel: Pretravel 0.091” (2.3mm); Overtravel 0.047” (1.2mm); Total travel 0.138” (3.5mm)
- Materials: Plunger/Upper Housing – Glass fiber reinforced PBT; Movable Contact – Gold over copper alloy; Switch Terminals – Brass with fin plating
- Environmental: Operating in -25°C to +50°C, humidity, vibration, shock resistance
- Soldering: Wave, manual, cleaning with alcohol-based solutions
- Certifications: UL94V-0 rated housing; no UL or CSA certification tested
Buy the NKK Series KP – Reliable Illuminated Pushbutton for Industrial Applications
Order the NKK Series KP illuminated pushbutton switch today online to enhance your control systems with bright LED illumination, reliable operation, and customizable caps. Designed for industrial environments, it features a compact size, short 3.5mm stroke, high durability with 5 million cycles, and an operational temperature range of -25°C to +50°C. The switch's high-quality materials and gold-plated contacts ensure long-term reliability, making it ideal for electronic control panels, machinery, and automation systems. Purchase now for quick delivery and installation support.
Get NKK Series KP today—built for precision, long-lasting durability, and customizable LED illumination for your control panel needs.
Frequently Asked Questions
Where can I buy NKK Switches KP0215ANBKG036G3SJB?
You can click on the BUY or RFQ button to purchase KP0215ANBKG036G3SJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part KP0215ANBKG036G3SJB?
You can download the KP0215ANBKG036G3SJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of KP0215ANBKG036G3SJB?
NKK Switches
