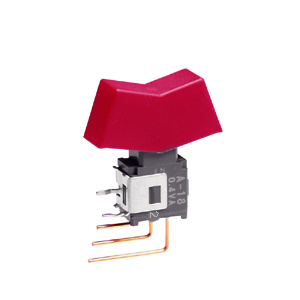

NKK Switches A12KV Subminiature Rocker Switch
A compact, reliable subminiature rocker switch designed for precise control in electronic devices. Its totally sealed body prevents contact contamination, ensuring high contact stability and long-term reliability. Suitable for logic-level applications, it features a space-saving size, making it ideal for minimizing PCB space usage. The switch comprises nickel-plated brass actuators, glass fiber reinforced polyamide cases, and tin-plated phosphor bronze contacts, with specifications including a 50 millicms maximum insulation resistance, 0.4VA max electrical capacity, and operating temperatures from -30°C to +85°C. It supports automated soldering and cleaning processes, facilitating efficient manufacturing and maintenance.
NKK Switches A12KV Subminiature Rocker Switch Specifications:
- Electrical Capacity: 0.4VA maximum @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 500V DC
- Dielectric Strength: 500V AC minimum for 1 minute
- Mechanical Life: 100,000 operations minimum for ON-None-ON circuit
- Electrical Life: 50,000 operations minimum
- Nominal Operating Force: 2.73N (momentary); 1.84N (maintained)
- Contact Timing: Nonshorting (break-before-make)
- Angle of Throw: 26°
- Actuator Material: Nickel plated brass
- Case Housing: Glass fiber reinforced polyamide
- Support Bracket: Not specified
- Support Bracket: Not specified
- Support Bracket: Not specified
- Support Bracket: Not specified
- Operating Temperature Range: -30°C through +85°C
- Humidity: 90 ~ 95% for 240 hours @ 40°C
- Vibration: 10 ~ 55Hz with peak-to-peak amplitude of 1.5mm for 1 minute
- Shock: 50G acceleration in 6 directions
- Soldering: Wave soldering profile; manual soldering profile
- Cleaning: Automated cleaning as per specifications
- Standards & Certifications: Not tested for UL or CSA, designed for low-voltage logic circuits
Buy the NKK Series A Process Sealed Subminiature Rockers: A12KV
Purchase the NKK Subminiature Rocker Switch online today to experience reliable, space-saving control in your electronic projects. Its sealed body and high contact stability ensure durability and top performance. Designed specifically for logic-level circuits, it’s ideal for manufacturing, automation, and compact device control, offering easy installation via wave or manual soldering and simplified cleaning processes. With long mechanical and electrical life ratings, this switch guarantees consistent operation in low-voltage applications. Order now and enhance your device's control system with this high-quality, compact rocker switch.
Get NKK A12KV today—built for precision, space-efficient, sealed operation and long-lasting reliability in electronic control applications.
Frequently Asked Questions
Where can I buy NKK Switches A12KV?
You can click on the BUY or RFQ button to purchase A12KV from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part A12KV?
You can download the A12KV datasheet or visit the NKK Switches website for support.
Who is the manufacturer of A12KV?
NKK Switches
