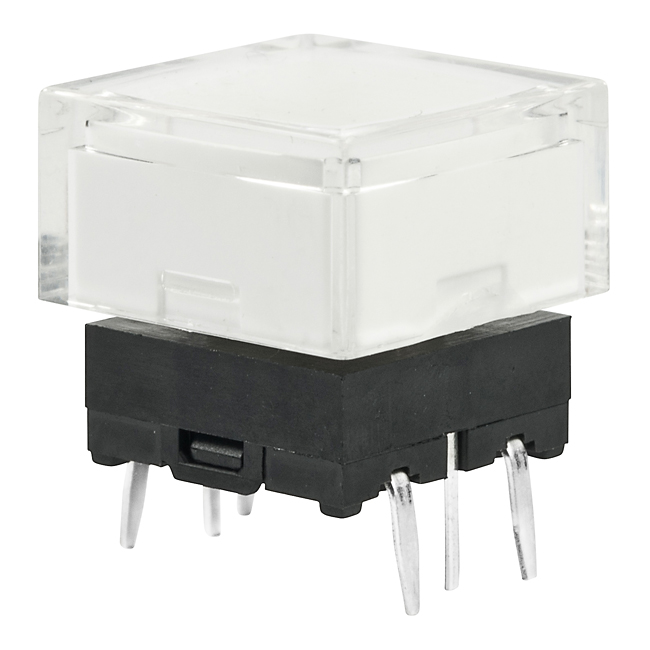

NKK Switches JB15LPEJB Illuminated tactile switch
The illuminated low-profile tactile switch offers reliable tactile feedback and enhanced visibility with integrated LED lighting, designed for PCB applications. Its compact, sealed construction ensures durability and contamination resistance. This switch features a crisp, high-force actuation suitable for precise control in low-voltage circuits, with full-face illumination available in multiple LED colors. Equipped with spring action terminals conforming to standard PCB spacing, it supports automated soldering and cleaning processes. Its robust polycarbonate actuator and sealed case make it ideal for industrial, medical, and instrumentation equipment requiring dependable actuation and clear illumination.
NKK Switches JB15LPEJB Illuminated tactile switch Specifications:
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 500 megohms minimum @ 250V DC
- Dielectric Strength: 250V AC minimum for 1 minute
- Mechanical Life: 5,000,000 operations minimum
- Electrical Life: 5,000,000 operations minimum
- Nominal Operating Force: 2.65N (High Force)
- Total Travel: 0.254mm (.010”) short actuator
- Actuator Material: Polyacetal for short, glass fiber reinforced PBT for extended
- Case Material: UL94V-0 rated polyamide
- Seal Material: Nitrile butadiene rubber
- Base Material: Glass fiber reinforced PBT
- Movable & Stationary Contacts: Brass with silver plating
- Terminals: Brass with silver plating, spring action, .100” (2.54mm) PCB spacing
- Operating Temperature: 25°C to +70°C
- Humidity Resistance: 90-95% for 240 hours @ 40°C
- Vibration Resistance: 10-55Hz, peak-to-peak 1.5mm
- Shock Resistance: 50G acceleration
- Soldering: Wave soldering profile A recommended
- Cleaning: Automated cleaning compatible
- Standards & Certifications: UL9AV-0 rated case & base
- LED Color Options: Red, Yellow, Green
- LED Forward Voltage: 2.0V-2.2V depending on color
- LED Forward Current: 20mA
- Temperature Range: -55°C to +105°C for contacts
