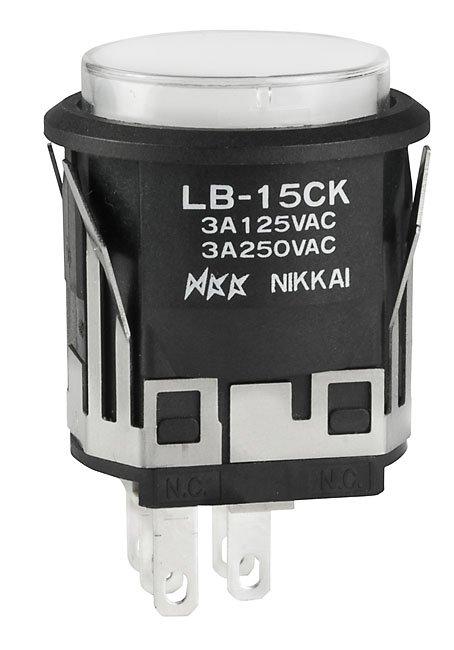

NKK Switches LB15CKW016BJB Illuminated Pushbutton Switch
A standard-sized, illuminated pushbutton switch designed for easy snap-in installation. Suitable for various electronic projects and control panels, providing reliable and visible activation.
NKK Switches LB15CKW016BJB Illuminated Pushbutton Switch Specifications:
- Poles & Circuits: SPDT (ON-ON), DPDT (ON-ON)
- Housing Colors: Black
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1000V AC minimum for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Rated Voltage: 3A @ 125V AC & 250V AC, 0.4VA @ 28V AC/DC
- Operating Temperature Range: -25°C through +50°C
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total Travel 0.118” (3.0mm)
- Materials: Glass fiber reinforced polyamide (UL94V-0), stainless steel, silver or gold-plated contacts
- Installation: Snap-in mounting with secure clips, panel seal compatible
Buy the Buy NKK Switches LB15CKW016BJB Part Number LB15CKW016BJB Online
Purchase the NKK Illuminated Pushbutton Switch LB15CKW016BJB today for reliable operation and easy installation. Perfect for control panels and electronic projects, it offers bright illumination, long mechanical life, and sturdy snap-in mounting. Designed to withstand operating temperatures from -25°C to +50°C, this switch provides excellent electrical ratings of 3A at 125V or 250V AC, ensuring dependable performance. Enhance your projects with this high-quality switch available for quick online purchase with fast delivery and excellent support.
Buy NKK Switches LB15CKW016BJB now and experience unmatched reliability and performance with easy snap-in installation and durable construction.
Frequently Asked Questions
Where can I buy NKK Switches LB15CKW016BJB?
You can click on the BUY or RFQ button to purchase LB15CKW016BJB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15CKW016BJB?
You can download the LB15CKW016BJB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15CKW016BJB?
NKK Switches
