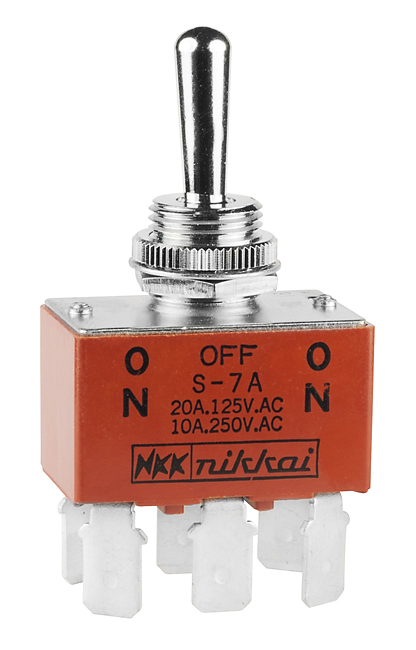

NKK Switches S7F Medium Capacity Toggle Switch
This standard size toggle switch offers reliable switching with medium capacity ratings suitable for diverse electrical applications. Designed with high-quality materials, it features resistive and inductive load capacities, multiple pole configurations, and optional splashproof and panel seal features. It complies with UL and CSA standards, ensuring safety and durability. The switch is available with single or double pole variants, quick connect or solder lug terminals, and lever lock options. Its operational temperature range is from -10°C to +70°C, making it ideal for industrial and commercial use environments requiring robust, dependable switching solutions.
NKK Switches S7F Medium Capacity Toggle Switch Specifications:
- Electrical Capacity: 15A 125V AC, 6A 250V AC, 20A 30V DC
- Contact Resistance: 10 milliohms maximum
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 2,000V AC minimum for 1 minute
- Mechanical Life: 30,000 to 50,000 operations depending on model
- Temperature Range: -10°C through +70°C
- Materials: Brass with chrome plating, Phenolic resin, Steel with zinc plating, Copper with silver plating, Silver alloy capped on copper
- Max Panel Thickness: 0.158 inch (4.0mm)
- Mounting Torque: 1.47 Nm (13 in-lb) for single nut, 2.94 Nm (26 in-lb) for double nut
- Soldering Temp & Time: Refer to manufacturer specifications
- Standards & Certifications: UL Recognized, CSA Certified
Buy the NKK Medium Capacity Toggle Switch – Reliable Switching for Industrial Applications
Order the medium capacity toggle switch online today to benefit from high-quality materials, multiple configurations, and industry certifications. Designed for durability, its resistive and inductive load capacities ensure dependable performance in both industrial and commercial environments. Whether you need a single or double pole model, quick connect or solder lug terminals, or splashproof features, this switch meets rigorous standards like UL and CSA. Enjoy fast delivery, easy ordering, and reliable switching solutions for your electrical projects.
Get NKK medium capacity toggle switch today—built for precision and long-lasting durability with multiple configurations and certified safety standards.
Frequently Asked Questions
Where can I buy NKK Switches S7F?
You can click on the BUY or RFQ button to purchase S7F from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part S7F?
You can download the S7F datasheet or visit the NKK Switches website for support.
Who is the manufacturer of S7F?
NKK Switches
