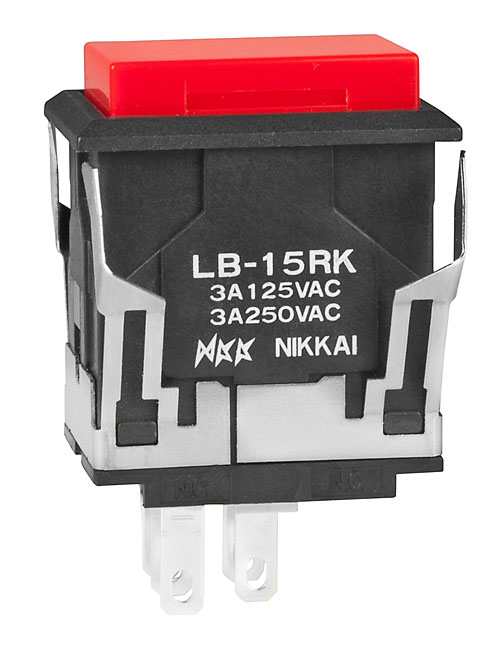

NKK Switches LB15RKW01C Illuminated Pushbutton Switch
This is a standard-sized illuminated pushbutton switch designed for snap-in mounting. It features a built-in illumination indicator for easy visibility and operation.
NKK Switches LB15RKW01C Illuminated Pushbutton Switch Specifications:
- Housing: Glass fiber reinforced polyamide (UL94V-0)
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC maximum
- Contact Resistance: 50 milliohms max for silver contacts, 100 milliohms max for gold contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 4.7N maximum
- Travel: Pretravel 1.5mm, Overtravel 1.5mm, Total travel 3.0mm
- Operating Temperature Range: -25°C through +50°C
- Mounting: Snap-in
- Lamps: Incandescent, Neon, or LED options available
- Lamp Voltage: 5V, 12V, 110V options
- Housing Color: Black
Buy the Buy NKK LB15RKW01C Illuminated Pushbutton Part Number LB15RKW01C Online
Order the NKK LB15RKW01C illuminated pushbutton switch online today to experience high durability, precise operation, and clear front-panel illumination. This switch offers a snap-in mount, making installation quick and secure, suitable for control panels, machinery, and industrial equipment. Designed with high-quality materials, it withstands harsh environments and frequent operation. Whether you need indicator lighting or tactile feedback, this switch delivers reliable performance, long service life, and easy replacement for industrial automation, control systems, or user interfaces.
Get NKK LB15RKW01C illuminated pushbutton today—built for reliable operation with bright illumination and durable snap-in mounting.
Frequently Asked Questions
Where can I buy NKK Switches LB15RKW01C?
You can click on the BUY or RFQ button to purchase LB15RKW01C from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15RKW01C?
You can download the LB15RKW01C datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15RKW01C?
NKK Switches
