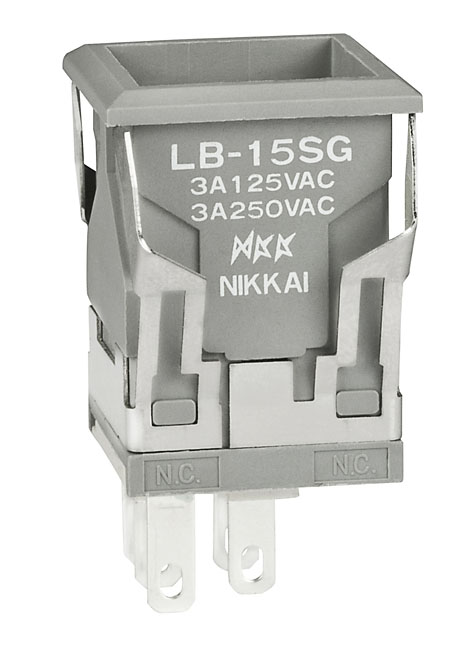

NKK Switches LB15SGW01 Illuminated Pushbutton Switch
The standard size illuminated pushbutton switch with snap-in mounting is designed for panel installation, offering bright illumination and reliable tactile feedback. It features a durable polymer housing, quick connect terminals, and a sealed lamp socket for enhanced environmental resistance. Capable of handling rated currents of 3A at 125V or 250V AC, with various LED and lamp options, this switch is ideal for industrial control, automation, and machinery interfaces. Its robust construction ensures long electrical and mechanical life, making it suitable for demanding operational environments.
NKK Switches LB15SGW01 Illuminated Pushbutton Switch Specifications:
- Housing Material: Polycarbonate with Glossy Finish
- Mounting Type: Snap-in
- Poles & Circuits: Single Pole, SPDT or DPDT options
- Rated Electrical Capacity: 3A @ 125V/250V AC, 0.4VA @ 28V AC/DC
- Electrical Resistance: Contact Resistance maximum 50 milliohms (silver), 100 milliohms (gold)
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,000V AC between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations (momentary), 200,000 (maintained circuit)
- Nominal Operating Force: 4.9N (approximate)
- Contact Timing: Nonshorting (break-before-make)
- Pretravel & Overtravel: 0.059” (1.5mm), Total Travel: 0.118” (3.0mm)
- Operating Temperature Range: -25°C to +50°C (illum., with splash cover: 0°C to +50°C; non-illuminated: -25°C to +70°C)
- Ingress Protection: Panel sealed model meets IP65 (IEC60529), similar to NEMA 4 & 13
- Materials: Housing from UL94V-0 rated Polyamide, contacts from Silver alloy or gold plated copper, base from Phosphor bronze or brass
Buy the NKK LB15SGW01 – Reliable Illuminated Pushbutton for Industrial Applications
Purchase the NKK LB15SGW01 illuminated pushbutton switch online today—engineered for durability and reliability in industrial control systems. Its snap-in mounting and sealed lamp socket make installation straightforward and resistant to dust and moisture. Suitable for automation, machinery, and control panels, this switch offers long electrical life with up to 1,000,000 operations, ensuring consistent performance. Featuring various LED and lamp options, it’s an ideal choice for demanding operational environments needing clear, bright indications and dependable tactile feedback.
Get NKK LB15SGW01 today—built for precision, durability, and seamless control in demanding environments.
