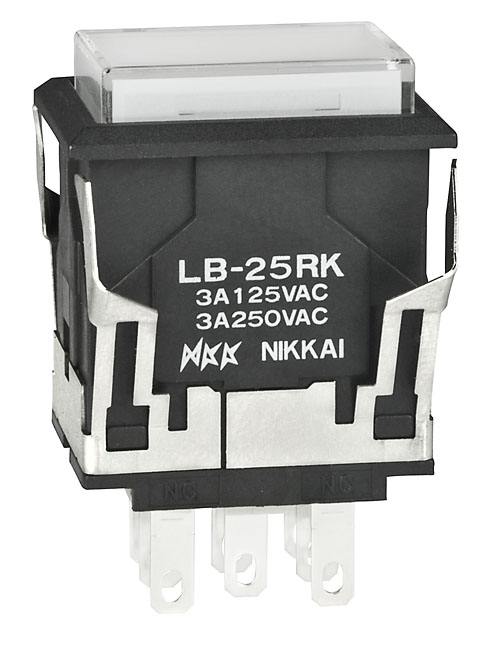

NKK Switches LB25RKW015C24JB Standard Size Pushbutton Switch
This standard size illuminated pushbutton switch features snap-in mounting design, making it ideal for control and automation tasks. It offers bright illumination for visibility and contains multiple LED color options including red, green, blue, and amber. Equipped with reliable snap-action contacts, it ensures long electrical life and responsiveness. The switch's robust construction includes polycarbonate caps and polyamide housing, with IP65 sealing for protection against dust and water. Suitable for various panel thicknesses, the LB25RKW015C24JB is engineered for durability in demanding industrial environments.
NKK Switches LB25RKW015C24JB Standard Size Pushbutton Switch Specifications:
- Housing Material: Polycarbonate
- Panel Seal: IP65 (IEC60529)
- Light Source: Bright LED (Red, Green, Blue, Amber)
- Dimensions: Standard size, suitable for panel thickness 0.039" to 0.157" (1.0mm to 4.0mm)
- Electrical Capacity: 3A @ 125/250V AC, 0.4VA @ 28V AC/DC
- Contact Resistance: 50 milliohms maximum for silver contacts
- Insulation Resistance: 200 megohms minimum @ 500V DC
- Dielectric Strength: 1000V AC between contacts, 1500V AC to case for 1 minute
- Mechanical Life: 1,000,000 operations
- Electrical Life: 200,000 operations
- Nominal Operating Force: Not specified
- Travel: Pretravel 0.059” (1.5mm), Overtravel 0.059” (1.5mm), Total travel 0.118” (3.0mm)
- Operating Temperature Range: -25°C to +50°C (-13°F to +122°F)
- Mounting: Snap-in, with stainless steel clips for secure attachment
- Terminals: Solder lug and .110” quick connect, epoxy sealed
Buy the Buy NKK Switches Standard Size Pushbutton Part Number LB25RKW015C24JB Online
Order the NKK Switches LB25RKW015C24JB today to enhance your control panel with a robust, illuminated pushbutton featuring snap-in mounting, IP65 protection, and multiple LED color options. Designed for long-lasting performance, it ensures clear visibility and reliable operation in demanding industrial environments. Perfect for automation and control applications, this switch combines durability with ease of installation. Tap into fast online purchasing and upgrade your equipment with confidence in quality and longevity.
Get NKK Switches LB25RKW015C24JB today—built for durability, bright illumination, and reliable control panel operation.
Frequently Asked Questions
Where can I buy NKK Switches LB25RKW015C24JB?
You can click on the BUY or RFQ button to purchase LB25RKW015C24JB from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB25RKW015C24JB?
You can download the LB25RKW015C24JB datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB25RKW015C24JB?
NKK Switches
