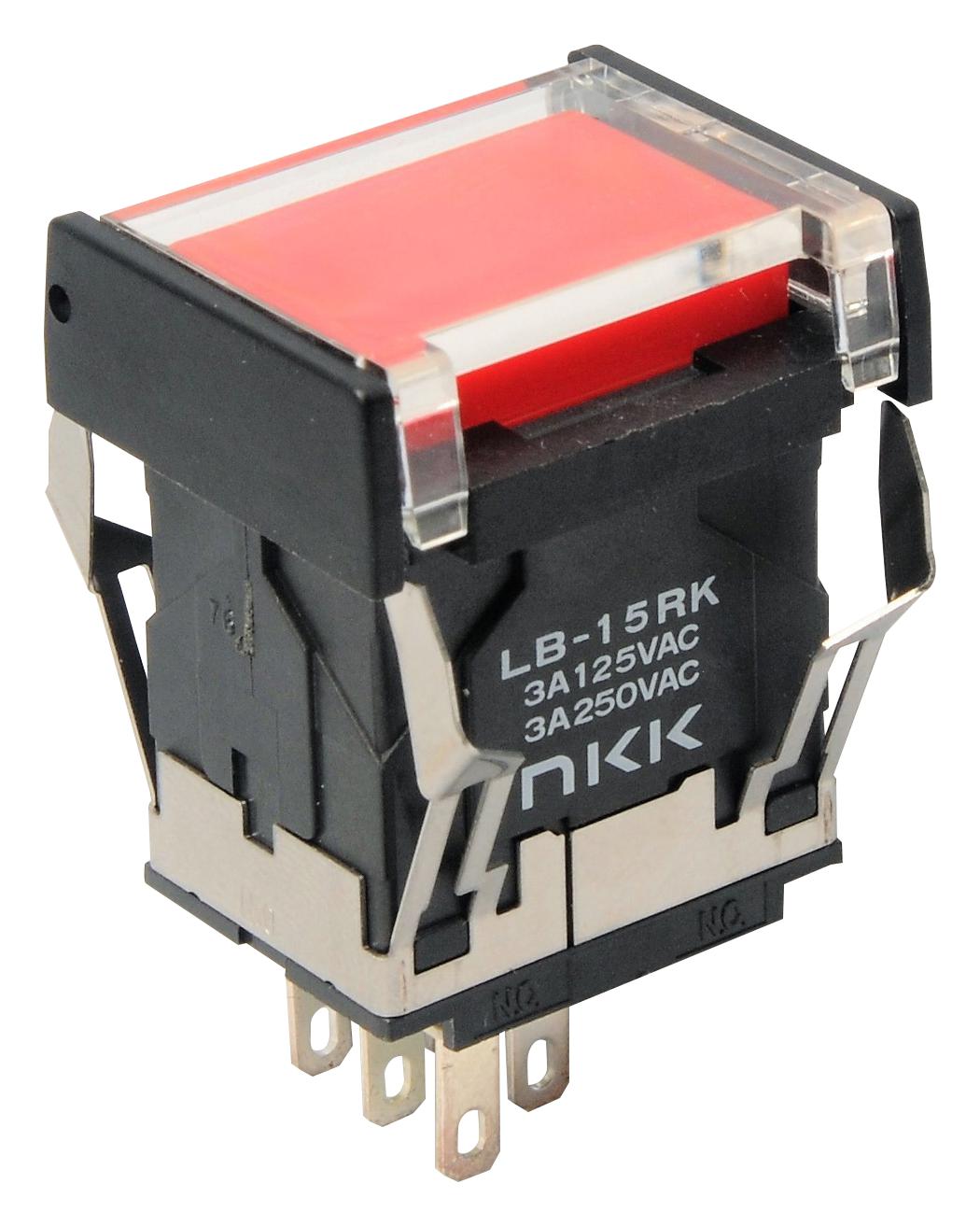

NKK Switches LB15VA001 Pushbutton Switch
The LB series pushbutton switch features a standard size design with a protective rectangular guard that reduces depth behind the panel by 0.5mm. Made from polycarbonate with a glossy finish, it offers a resilient housing with glass fiber-reinforced polyamide and stainless steel snap-in frame, suitable for harsh environments. Capable of 3A resistive load at 125V AC or 250V AC, this switch provides a mechanical life of 1,000,000 operations, with operating temperatures from -25°C to +70°C, and complies with RoHS standards, making it ideal for industrial control and automation applications.
NKK Switches LB15VA001 Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Cap Material: Polyamide, Glossy Finish, 0.039'' to 0.138'' thickness
- Switch Rating: 3A at 125V AC or 250V AC, 3A at 30V DC
- Contact Resistance: 50 milliohms maximum
- Insulation Resistance: 200 megohms minimum at 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC between contacts and case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 100,000 operations minimum
- Pretravel and Overtravel: 0.059'' (1.5mm), Total Travel: 0.118'' (3.0mm)
- Operating Temperature: -25°C to +70°C
- Shock Resistance: 50G acceleration
- Humidity: 90-95% for 96 hours at 40°C
- Standards: UL94V-0 flammability, RoHS compliant
Buy the NKK Series LB Pushbutton Switch: LB15VA001
Order the NKK LB series pushbutton switch online today. Designed for durability and precision, it features a protective guard, high electrical capacity, and reliable performance in demanding environments. Its glass fiber-reinforced polyamide housing ensures safety and durability, while the stainless steel snap-in frame makes installation easy. With a mechanical life of one million operations and compliance with RoHS standards, this switch is ideal for industrial automation, control panels, and machinery. Purchase now for optimal control solutions.
Get NKK LB15VA001 today—built for industrial control reliability and long-lasting performance.
Frequently Asked Questions
Where can I buy NKK Switches LB15VA001?
You can click on the BUY or RFQ button to purchase LB15VA001 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15VA001?
You can download the LB15VA001 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15VA001?
NKK Switches
