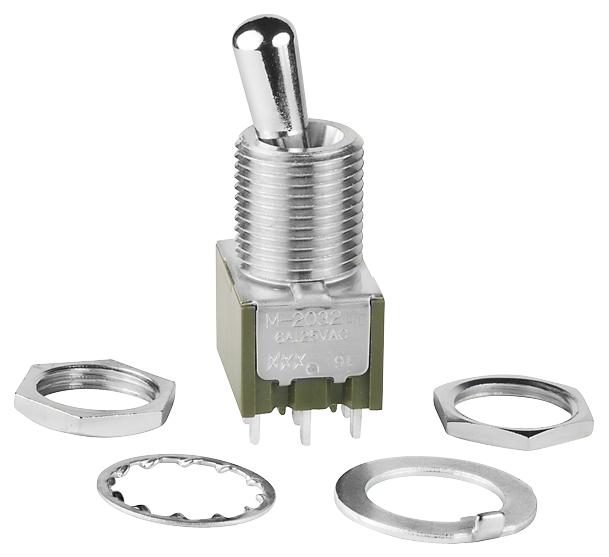

NKK Switches M2032BB1W01 Miniature Toggle Switch
Miniature toggle switch with silver contacts rated for 6A at 125V AC and 3A at 250V AC. Features include anti-rotation design, high torque bushing, insulated barriers, and epoxy sealed terminals. Suitable for control panels requiring reliable electrical switching, with a robust construction utilizing brass, stainless steel, and high-quality plastics. Available with various bushings, caps, and optional water-proof features meeting IP67 standards. Ideal for automation, industrial control, and machinery applications demanding durability and performance.
NKK Switches M2032BB1W01 Miniature Toggle Switch Specifications:
- Electrical Capacity Resistive Load: 6A @ 125V AC, 3A @ 250V AC
- Contact Resistance: 10 milliohms maximum for silver
- Insulation Resistance: 1,000 megohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC between contacts for 1 minute, 1,500V AC between contacts and case for 1 minute
- Mechanical Life: Minimum 50,000 operations for gold contacts
- Materials & Finishes: Brass with chrome plating, stainless steel case, UL94V-0 UL flammability rating
- Operating Temp Range: -30°C to +85°C
- Vibration & Shock resistance: 10-55Hz, 50G acceleration
- Sealing: Splashproof options with IP67 compliance
- Mounting Torque: 3.0 Nm for large bushings, 1.5 Nm for standard bushings
- Standards & Certifications: UL Listed, CSA Certified, recognized at 6A @ 125V AC
Buy the Buy NKK Series M Miniature Toggle Part Number M2032BB1W01 Online
Order the NKK Miniature Toggle Switch M2032BB1W01 online today to ensure your control systems operate reliably. Featuring silver contacts rated for 6A at 125V AC, PTFE insulation, and epoxy sealed terminals, this switch offers durability and high performance for industrial automation, machinery, and control panels. With optional IP67 waterproofing, anti-rotation design, and various bushing styles, it ensures precise switching in harsh environments. Purchase now to benefit from fast delivery, quality assurance, and competitive pricing for your control solutions.
Buy NKK Series M M2032BB1W01 miniature toggle switch now and experience unmatched reliability and versatile control performance, perfect for industrial automation and control panels.
Frequently Asked Questions
Where can I buy NKK Switches M2032BB1W01?
You can click on the BUY or RFQ button to purchase M2032BB1W01 from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part M2032BB1W01?
You can download the M2032BB1W01 datasheet or visit the NKK Switches website for support.
Who is the manufacturer of M2032BB1W01?
NKK Switches
