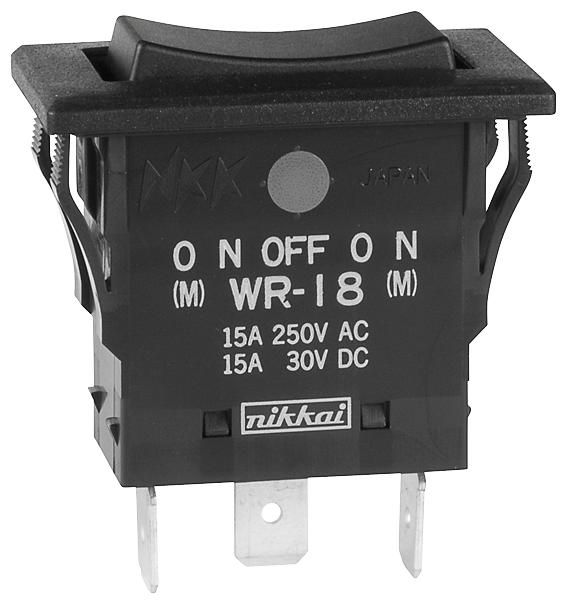

NKK Switches WR18AF Sealed Rocker Switch
The Series WR environment-sealed rocker switches are designed for industrial applications, providing IP60 and IP67 sealing for dust and water protection. Crafted with heat-resistant resin meeting UL94V-0 standards, these switches feature minimal contact bounce, high dielectric strength, and a mechanical life of up to 30,000 operations. They are available with various termination types including solder lug, screw, quick connect, and wire lead, suitable for up to 15A voltage ratings. Certified to UL, CSA standards, and VDE approval options, they ensure reliable performance in harsh environments and conform to global safety standards.
NKK Switches WR18AF Sealed Rocker Switch Specifications:
- Current Rating: 15A @ 125/250V AC or 15A @ 30V DC
- Electrical Capacity: Resistive load
- Mechanical Life: 30,000 operations minimum
- Insulation Resistance: Minimum 200 megohms @ 500V DC
- Dielectric Strength: 1,250V AC (contacts), 3,750V AC (contacts to case)
- Operating Temp Range: -20°C to +105°C
- Humidity: 90-95% for 96 hours @ 40°C
- Vibration: 10-55Hz with peak-to-peak amplitude of 1.5mm
- Shock: 50G acceleration
- Ingress Protection: IP67 for wire lead models, IP60 for solder, screw, quick connect models
- Materials: Phenylene oxide, polyamide UL94V-0, glass fiber reinforced polyamide, nitrile butadiene rubber
- Terminals: Solder lug, screw, quick connect, wire lead
- Flammability Standards: UL 94V-0, VW-1
- Certifications: UL, CSA, VDE options available
- Soldering & Cleaning: Manual soldering, alcohol-based cleaning
- Solder Lug dimensions: 4.0 mm, Max 10 millichms; independent terminal ratings, recognized for 15A @ 125/250V AC
Buy the NKK WR18AF – Reliable Sealed Rocker Switch for Industrial Applications
Purchase the NKK WR18AF sealed rocker switch online today to benefit from reliable sealing, IP67 water and dust protection, and robust operation up to 15A. This switch is engineered with high-quality materials meeting UL94V-0 flammability standards and certified under UL, CSA, and VDE standards, making it suitable for demanding industrial applications. Easy to install with multiple termination options including solder lug, screw, quick connect, and wire lead, it guarantees long-lasting performance in harsh environments. Buy now for proven durability and safety.
Order your NKK Series WR18AF sealed rocker switch today and ensure dependable performance in harsh industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches WR18AF?
You can click on the BUY or RFQ button to purchase WR18AF from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part WR18AF?
You can download the WR18AF datasheet or visit the NKK Switches website for support.
Who is the manufacturer of WR18AF?
NKK Switches
