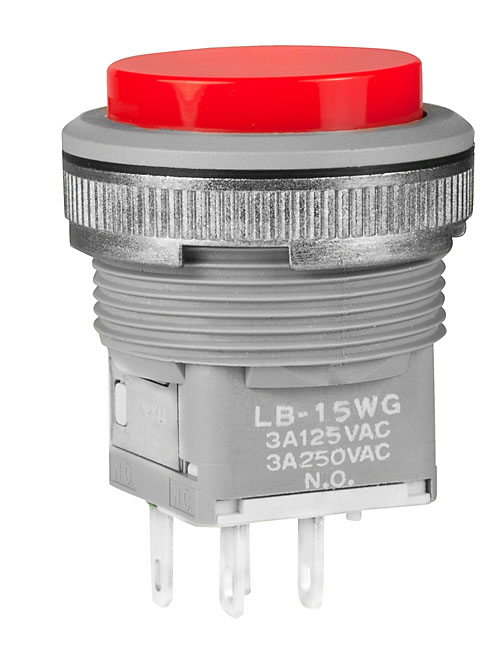

NKK Switches LB15WGW01CJ Waterproof Pushbutton Switch
Standard-sized, illuminated, waterproof pushbutton switch designed for reliable operation in demanding environments. Features bright diffusion, front panel relamping, and optional bicolor LEDs in white, green, and blue. Constructed with stainless steel clips for secure mounting across various panel thicknesses, it offers tactile and audible feedback, a snap-action contact mechanism, and IP65 sealing compliant with IEC60529. Ideal for industrial automation, control panels, and machinery requiring durable, easily maintainable pushbuttons with versatile light options and long electrical life.
NKK Switches LB15WGW01CJ Waterproof Pushbutton Switch Specifications:
- Housing Material: Glass fiber reinforced polyamide (UL94V-0)
- Contact Resistance: 50 milliohms maximum for silver; 100 milliohms maximum for gold
- Insulation Resistance: 200 megaohms minimum @ 500V DC
- Dielectric Strength: 1,000V AC minimum between contacts, 1,500V AC between contacts & case
- Mechanical Life: 1,000,000 operations minimum
- Electrical Life: 200,000 operations minimum
- Nominal Operating Force: 5.39N
- Travel: Pretravel 0.059” (1.5mm); Overtravel 0.059” (1.5mm); Total 0.118” (3.0mm)
- Operating Temperature Range: -25°C to +50°C (illuminated), -25°C to +70°C (nonilluminated)
- Sealing Standard: IP65 of IEC60529 (NEMA 4 & 13 compatible)
- Mounting Torque: 1.96Nm (17.35 lbsin)
- Output: Snap-action contact, nonshorting (break-before-make)
- Terminals: Solder lug and 0.110” quick connect, epoxy sealed to prevent contamination
Buy the NKK LB15WGW01CJ – Reliable Waterproof Pushbutton for Industrial Applications
Purchase the waterproof illuminated pushbutton switch online today and enjoy a reliable, durable component designed for demanding industrial environments. With IP65 sealing, bright diffuse lighting, and versatile LED options, it ensures visibility and durability. Ideal for control panels, automation systems, and machinery, this switch offers long electrical life, easy mounting, and maintenance. Order now to enhance your control solutions with a high-quality, corrosion-resistant switch that supports various mounting and wiring preferences for seamless integration into your equipment.
Get NKK LB15WGW01CJ today—built for precision, long-lasting durability, and sealed protection in demanding industrial environments.
Frequently Asked Questions
Where can I buy NKK Switches LB15WGW01CJ?
You can click on the BUY or RFQ button to purchase LB15WGW01CJ from an authorized NKK Switches distributor.
How do I troubleshoot issues or seek technical support for part LB15WGW01CJ?
You can download the LB15WGW01CJ datasheet or visit the NKK Switches website for support.
Who is the manufacturer of LB15WGW01CJ?
NKK Switches
